SKU:
CN T4230ZTM5
€ 65.336,76
1-2 weeks delivery time
-
+
The Nanni Engine Z4.230 Mono or Right with the Bravo 3 gearbox and a 1.81 reduction ratio is designed to provide powerful and reliable marine performance. With 230 hp from a 2,982 cm³ displacement, the engine operates at 3,600 rpm, delivering 569.4 Nm of peak torque at 2,000 rpm. It features a direct injection fuel system, turbocharging, and a closed cooling system. The engine has a dry weight of 476 kg with the Bravo X Three system, ensuring efficiency and compliance with emissions standards like EPA Marine Tier 3.
- Description
- Ask a Question
-

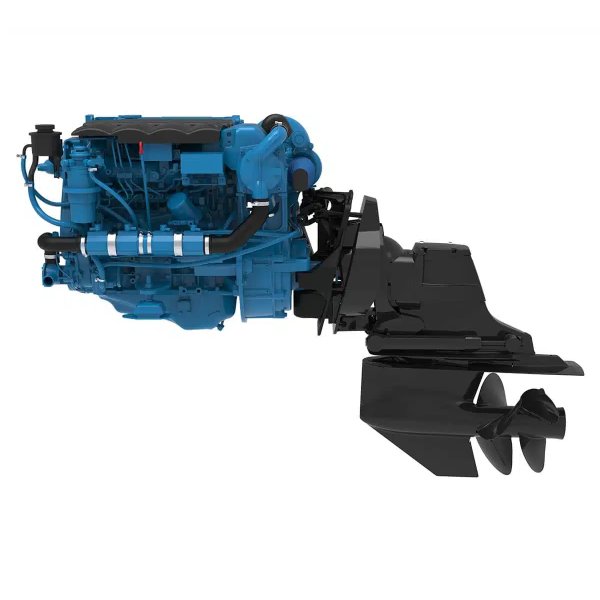

Nanni Engine Z4.230 Mono Or Right, Gearbox Bravo 3, Reduction 1.81
The Nanni Engine Z4.230 Mono Or Right is a powerful 4-stroke diesel engine that combines high performance with reliability. With a displacement of 2,982 liters, this engine produces an impressive 230 horsepower at the crankshaft, making it suitable for a variety of marine applications. The engine is designed to deliver peak torque at 2,000 rpm, ensuring optimal power delivery for demanding conditions.
- Power at crankshaft: 169.1 kW [230 hp]
- Displacement: 2,982 l [182 in³]
- Configuration: 4 cylinders in line
- Type: 4-stroke diesel
- Bore and Stroke: 96 x 103 mm [3.78 x 4.06 in]
- Compression ratio: 15 : 1
- Rated speed: 3600 rpm
- Idle speed: 680 rpm
- Peak torque: 569.4 Nm
- Peak torque speed: 2000 rpm
- Engine base: Toyota
- Fuel system: Direct injection, high pressure common rail electronically controlled
- Air intake: Turbocharged & intercooled
- Cooling system: Closed cooling with heat exchanger
- Maximum mounting angle: 0° front down / 0° front up
- Alternator: 12 Volt / 130 Amp
- Classification: M6
- Emission standards: IMO MARPOL Annex VI Compliant, RCD2 2013/53/EU, EPA Marine Tier 3, BSO 2
- Dry weight with Bravo X Three: 476 kg [1049.4 lbs]
This engine is a great choice for marine applications requiring a balance of power, fuel efficiency, and durability.
Specifications Summary
- Horsepower: 230 hp (169.2 kW)
- RPM: 3600 rpm
- Cylinders: 4 / 2982 cm³
- Gearbox: BRAVO 3
- Reduction ratio: 1.81
- Panel: Si4
-
