SKU:
CN T4230ZTG5
€ 64.487,70
1-2 weeks delivery time
-
+
The Nanni Engine Z4.230 Mono or Right with the Bravo 2 gearbox and a 1.81 reduction ratio offers outstanding performance in marine applications. It delivers 230 hp from its 2,982 cm³ displacement, operating at 3,600 rpm with peak torque of 569.4 Nm at 2,000 rpm. The engine is equipped with a turbocharged and intercooled intake, a direct injection system, and meets emissions standards like EPA Marine Tier 3. The dry weight of this engine with the Bravo X Three gearbox is 476 kg.
- Description
- Ask a Question
-

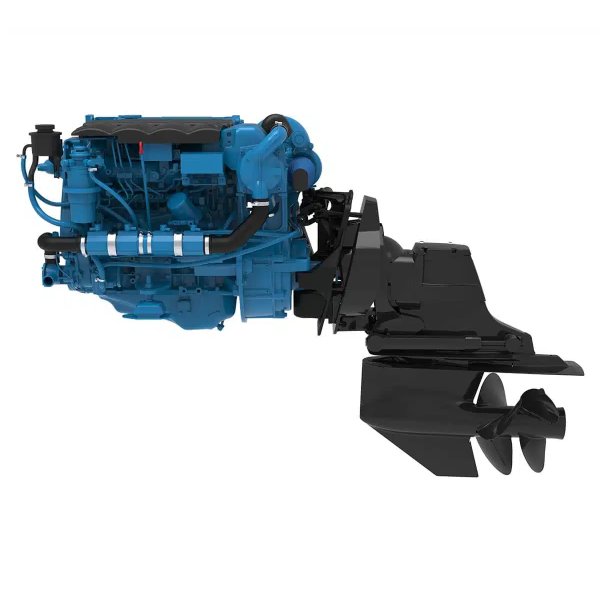

Nanni Engine Z4.230 Mono Or Right, Gearbox Bravo 2, Reduction 1.81
The Nanni Engine Z4.230 Mono Or Right offers outstanding performance with a powerful engine configuration, making it an excellent choice for marine applications. Here's an overview of the product's technical specifications:
- Power at crankshaft: 169.1 kW [230 hp]
- Displacement: 2,982 l [182 in³]
- Configuration: 4 cylinders in line
- Engine Type: 4-stroke diesel
- Bore and Stroke: 96 x 103 mm [3.78 x 4.06 in]
- Compression ratio: 15:1
- Rated speed: 3600 rpm
- Idle speed: 680 rpm
- Peak torque: 569.4 Nm
- Peak torque speed: 2000 rpm
- Engine base: Toyota
- Fuel system: Direct injection, high pressure common rail electronically controlled
- Air intake: Turbocharged & intercooled
- Cooling: Closed cooling with heat exchanger
- Maximum mounting angle: 0° front down / 0° front up
- Alternator: 12 Volt / 130 Amp
- Classification: M6
- Emission Standards: IMO MARPOL Annex VI Compliant, RCD2 2013/53/EU, EPA Marine Tier 3, BSO 2
- Dry Weight with Bravo X Three: 476 kg [1049.4 lbs]
Technical Specifications
- Horsepower (kW): 230 (169.2)
- RPM: 3600
- Cylinders/cm³: 4 / 2982
- Gearbox: Bravo 2
- Reduction: 1.81
- Panel: Si4
-
