SKU:
CN T4230ZBM5
€ 63.180,87
1-2 weeks delivery time
-
+
The Nanni Engine Z4.230 Left with the Bravo 3 gearbox and a reduction ratio of 1.81 is designed for marine environments. It delivers 230 hp from a 2,982 cm³ engine, operating at 3,600 rpm, with peak torque of 569.4 Nm at 2,000 rpm. The engine is equipped with turbocharging, direct injection, and a closed cooling system. With a dry weight of 476 kg and full compliance with emission standards like EPA Marine Tier 3, it provides both power and durability for marine applications.
- Description
- Ask a Question
-

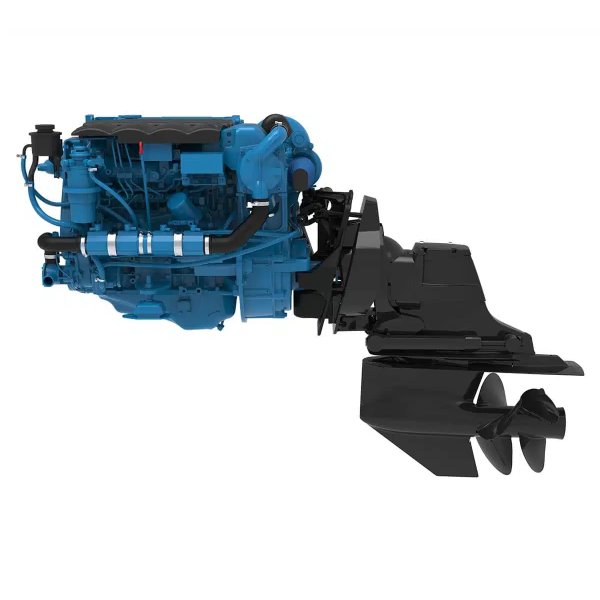

Nanni Engine Z4.230 Left, Gearbox Bravo 3, Reduction 1.81
This engine delivers impressive performance for various marine applications. Designed with a powerful four-cylinder inline engine configuration, it is built for durability and efficiency.
- Power at crankshaft: 169.1 kW [230 hp]
- Displacement: 2,982 l [182 in3]
- Configuration: 4 cylinders in line
- Type: 4-stroke diesel
- Bore and stroke: 96 x 103 mm [3.78 x 4.06 in]
- Compression ratio: 15 : 1
- Rated speed: 3600 rpm
- Idle speed: 680 rpm
- Peak torque: 569.4 Nm
- Peak torque speed: 2000 rpm
- Engine base: Toyota
- Fuel system: Direct injection, high pressure common rail electronically controlled
- Air intake: Turbocharged & intercooled
- Cooling: Closed cooling with heat exchanger
- Maximum mounting angle: 0° front down / 0° front up
- Alternator: 12 Volt / 130 Amp
- Classification: M6
- Emission Standards: IMO MARPOL Annex VI Compliant, RCD2 2013/53/EU, EPA Marine Tier 3, BSO 2
- Dry weight with Bravo X Three: 476 kg [1049.4 lbs]
Technical Specifications
- Horsepower: 230 hp (169.2 kW)
- RPM: 3600
- Cylinders / Displacement: 4 cylinders / 2982 cm³
- Gearbox: Bravo 3
- Reduction: 1.81
- Panel: Si4
-
