SKU:
CN T4230ZBG5
€ 62.331,86
1-2 weeks delivery time
-
+
The Nanni Engine Z4.230 Left with the Bravo 2 gearbox and a reduction ratio of 1.81 is designed for marine use, offering 230 hp from its 2,982 cm³ displacement. The engine runs at a rated speed of 3,600 rpm and produces 569.4 Nm of peak torque at 2,000 rpm. It features a direct injection system, turbocharging, and complies with emissions regulations such as EPA Marine Tier 3. The engine, with its Bravo X Three gearbox, has a total dry weight of 476 kg, ensuring strong performance and reliability.
- Description
- Ask a Question
-

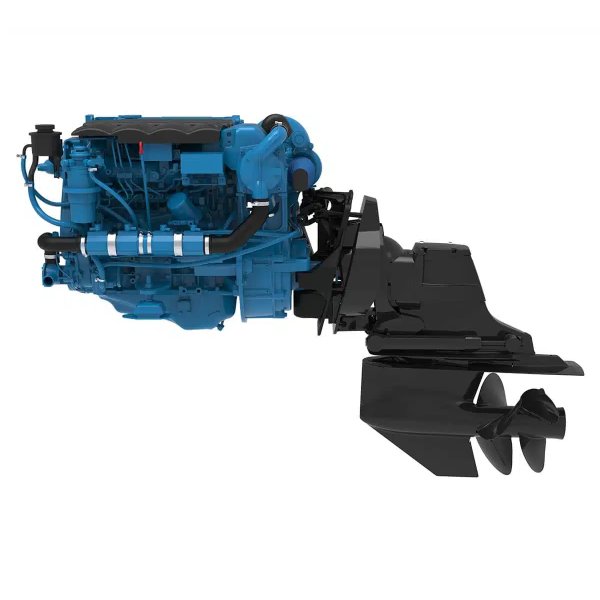

Nanni Engine Z4.230 Left, Gearbox Bravo 2, Reduction 1.81
The Nanni Engine Z4.230 Left, with its Bravo 2 gearbox and reduction ratio of 1.81, is a powerful and reliable engine designed for marine use. It offers impressive performance and durability for a variety of boating applications.
- Power at crankshaft: 169.1 kW [230 hp]
- Displacement: 2,982 l [182 in³]
- Configuration: 4 cylinders in line
- Type: 4-stroke diesel
- Bore and stroke: 96 x 103 mm [3.78 x 4.06 in]
- Compression ratio: 15:1
- Rated speed: 3600 rpm
- Idle speed: 680 rpm
- Peak torque: 569.4 Nm
- Peak torque speed: 2000 rpm
- Engine base: Toyota
- Fuel system: Direct injection, high pressure common rail electronically controlled
- Air intake: Turbocharged & intercooled
- Cooling: Closed cooling with heat exchanger
- Maximum mounting angle: 0° front down / 0° front up
- Alternator: 12 Volt / 130 Amp
- Classification: M6
- Emission Standards: IMO MARPOL Annex VI Compliant, RCD2 2013/53/EU, EPA Marine Tier 3, BSO 2
- Dry Weight with Bravo X Three: 476 kg [1049.4 lbs]
- Horsepower (kW): 230 (169.2)
- Rpm: 3600
- Cylinders/cm³: 4 / 2982
- Gearbox: BRAVO 2
- Reduction: 1.81
- Panel: Si4
-
