SKU:
CN T4205ZTR5
€ 50.298,72
1-2 weeks delivery time
-
+
The Nanni Engine Z4.205 is a 4-stroke diesel engine with a 200 hp output, designed for the Bravo system. It features a displacement of 2,982 cm³, a turbocharged and intercooled air intake, and operates at a rated speed of 3,600 rpm. It uses a direct injection fuel system and has a maximum peak torque of 501 Nm at 2,000 rpm. This engine complies with IMO MARPOL Annex VI and EPA Marine Tier 3 emission standards and is designed for a dry weight of 350 kg.
- Description
- Ask a Question
-

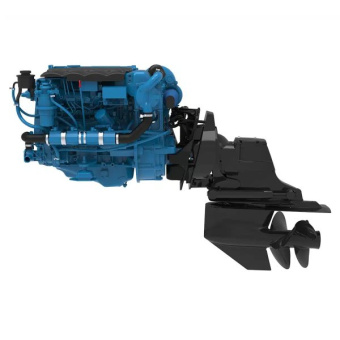

Nanni Engine Z4.205 Prepared for Bravo (Mono Or Right), No Gearbox, No Reduction
The Nanni Engine Z4.205 is a powerful and reliable marine engine, designed specifically for the Bravo system. Below is an overview of its key specifications and features:
- Power at crankshaft: 200 hp (147.2 kW)
- Displacement: 2,982 l (182 in3)
- Configuration: 4 cylinders in line
- Type: 4-stroke diesel engine
- Bore and Stroke: 96 x 103 mm (3.78 x 4.06 in)
- Compression Ratio: 15:1
- Rated Speed: 3,600 rpm
- Idle Speed: 730 rpm
- Peak Torque: 501 Nm
- Peak Torque Speed: 2,000 rpm
- Engine Base: Toyota
- Fuel System: Direct injection, high pressure common rail electronically controlled
- Air Intake: Turbocharged and intercooled
- Cooling: Closed cooling with heat exchanger
- Maximum Mounting Angle: 0° front down / 0° front up
- Alternator: 12 Volt / 130 Amp
- Classification: M6
- Emission Standards: IMO MARPOL Annex VI Compliant, RCD2 2013/53/EU, EPA Marine Tier 3, BSO 2
- Dry Weight: 350 kg (771.6 lbs)
Horsepower & Performance
- Horsepower: 200 hp (147.2 kW)
- Engine RPM: 3,600 rpm
- Cylinders / Displacement: 4 cylinders, 2,982 cm³
- Gearbox: None
- Reduction: None
- Panel: Si4
-
