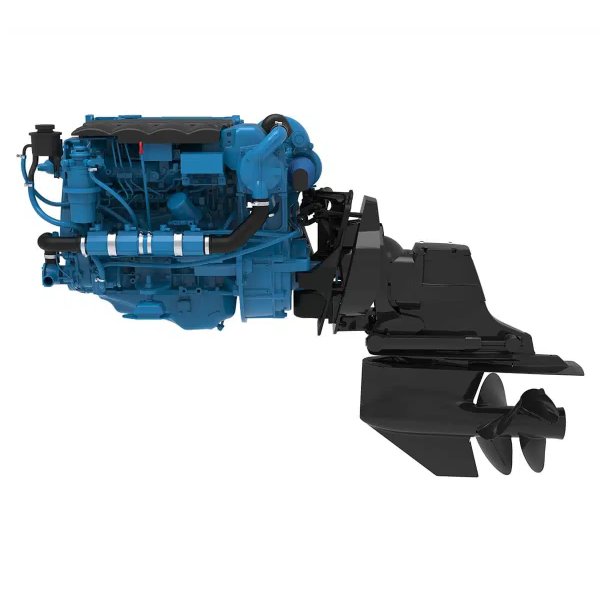

Nanni Engine Z4.205 (Mono Or Right) - Gearbox Bravo 3, Reduction 1.81

SKU: CN T4205ZTM5

€ 62.626,96

1-2 weeks delivery time

- +

Add to cart

The Nanni Engine Z4.205 (Mono or Right) with Gearbox Bravo 3 and a reduction of 1.81 provides 200 hp (147.2 kW) at 3600 rpm. Its 4-cylinder in-line engine, with a displacement of 2982 cm³, ensures robust marine performance. The engine features a direct injection fuel system, turbocharged and intercooled air intake, and a closed cooling system. It complies with emission standards like IMO MARPOL Annex VI and EPA Marine Tier 3, with a dry weight of 350 kg (771.6 lbs).

Description
Ask a Question

Nanni Engine Z4.205 (Mono Or Right) - Gearbox Bravo 3, Reduction 1.81

Introducing the Nanni Engine Z4.205, a high-performance diesel engine built for reliability and power. This engine is designed to offer efficient operation and smooth performance, making it ideal for marine applications.
- Power at crankshaft: 147.2 kW [200 hp]
- Displacement: 2,982 l [182 in3]
- Configuration: 4 cylinders in line
- Type: 4-stroke diesel
- Bore and stroke: 96 x 103 mm [3.78 x 4.06 in]
- Compression ratio: 15:1
- Rated speed: 3600 rpm
- Idle speed: 730 rpm
- Peak torque: 501 Nm
- Peak torque speed: 2000 rpm
- Engine base: Toyota
- Fuel system: direct injection, high pressure common rail electronically controlled
- Air intake: turbocharged & intercooled
- Cooling: closed cooling with heat exchanger
- Maximum mounting angle: 0° front down / 0° front up
- Alternator: 12 Volt / 130 Amp
- Classification: M6
- Emission Standards: IMO MARPOL Annex VI Compliant, RCD2 2013/53/EU, EPA Marine Tier 3, BSO 2
- Dry Weight: 350 kg [771.6 lbs]
Engine Specifications

The Nanni Engine Z4.205 provides robust power with excellent fuel efficiency, making it an excellent choice for demanding maritime environments.
- Horsepower: 200 hp (147.2 kW)
- RPM: 3600
- Cylinders/Displacement: 4 / 2982 cm³
- Gearbox: BRAVO 3
- Reduction: 1.81
- Panel: Si4
