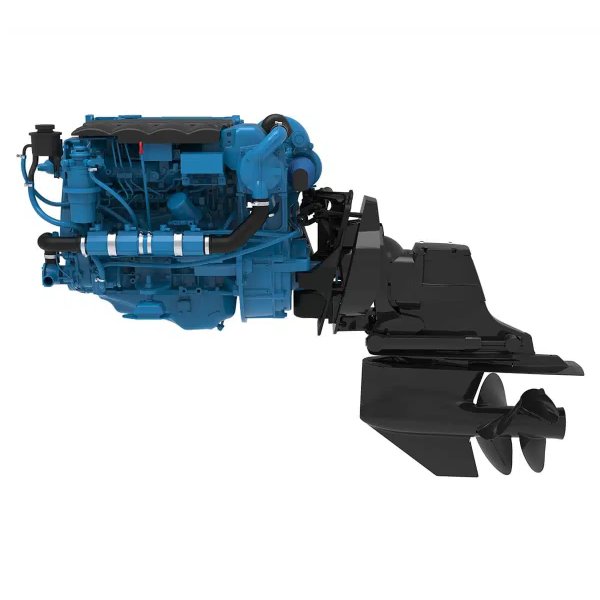

Nanni Engine Z4.205 (Mono Or Right)

SKU: CN T4205ZTG5

€ 61.964,88

1-2 weeks delivery time

- +

Add to cart

The Nanni Engine Z4.205 (Mono or Right) is a powerful marine diesel engine that delivers 200 hp (147.2 kW) at 3600 rpm. With a 4-cylinder in-line configuration and a displacement of 2982 cm³, it’s designed for efficiency and durability. The engine features a turbocharged and intercooled air intake, direct injection fuel system, and a closed cooling system. It meets IMO MARPOL Annex VI and EPA Marine Tier 3 standards, and weighs 350 kg (771.6 lbs).

Description
Ask a Question

Nanni Engine Z4.205 (Mono Or Right)

The Nanni Engine Z4.205 is a powerful, reliable diesel engine designed for marine use. It delivers impressive performance and efficiency for demanding applications. Here are the key features of this engine:
- Power at crankshaft: 147.2 kW [200 hp]
- Displacement: 2,982 l [182 in3]
- Configuration: 4 cylinders in line
- Type: 4-stroke diesel
- Bore and stroke: 96 x 103 mm [3.78 x 4.06 in]
- Compression ratio: 15:1
- Rated speed: 3600 rpm
- Idle speed: 730 rpm
- Peak torque: 501 Nm
- Peak torque speed: 2000 rpm
- Engine base: Toyota
- Fuel system: Direct injection, high pressure common rail electronically controlled
- Air intake: Turbocharged & intercooled
- Cooling: Closed cooling with heat exchanger
- Maximum mounting angle: 0° front down / 0° front up
- Alternator: 12 Volt / 130 Amp
- Classification: M6
- Emission Standards: IMO MARPOL Annex VI Compliant, RCD2 2013/53/EU, EPA Marine Tier 3, BSO 2
- Dry Weight: 350 kg [771.6 lbs]
Additional Specifications

In addition to its outstanding performance, the Nanni Engine Z4.205 has several important technical specifications:
- Horsepower: 200 hp (147.2 kW)
- RPM: 3600
- Cylinders: 4 / 2982 cm³
- Gearbox: BRAVO 2
- Reduction: 1.81 TRIBORD
- Panel: Si4
