SKU:
CN T4205ZBM5
€ 61.240,15
1-2 weeks delivery time
-
+

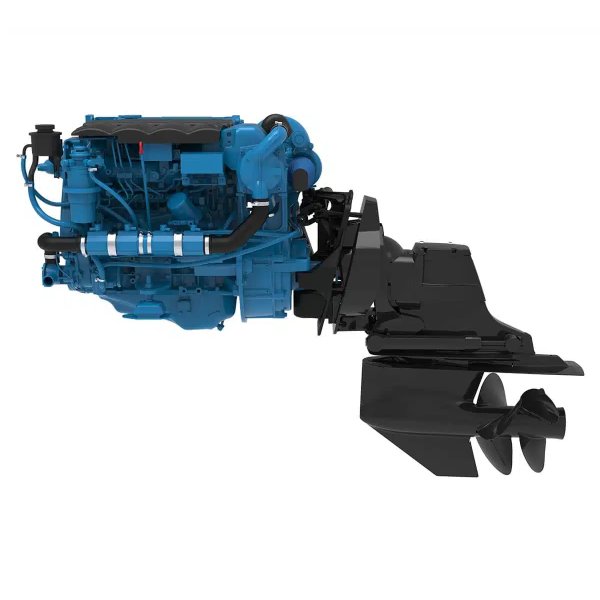

The Nanni Engine Z4.205 (Left) with Gearbox Bravo 3 and a reduction of 1.81 Babord delivers 200 hp (147.2 kW) at 3600 rpm. Its 4-cylinder in-line configuration with a 2982 cm³ displacement ensures reliable performance. The engine is equipped with a direct injection fuel system, turbocharged and intercooled air intake, and closed cooling. It adheres to IMO MARPOL Annex VI, EPA Marine Tier 3, and other emission standards, with a dry weight of 350 kg (771.6 lbs).
- Description
- Ask a Question
-
Nanni Engine Z4.205 (Left) - Gearbox Bravo 3, Reduction 1.81 Babord
This engine model continues to deliver power and performance, making it an excellent choice for marine vessels.
- Power at crankshaft: 147.2 kW [200 hp]
- Displacement: 2,982 l [182 in³]
- Configuration: 4 cylinders in line
- Type: 4-stroke diesel
- Bore and Stroke: 96 x 103 mm [3.78 x 4.06 in]
- Compression ratio: 15 : 1
- Rated speed: 3600 rpm
- Idle speed: 730 rpm
- Peak torque: 501 Nm
- Peak torque speed: 2000 rpm
- Engine base: Toyota
- Fuel system: Direct injection, high pressure common rail electronically controlled
- Air intake: Turbocharged & intercooled
- Cooling: Closed cooling with heat exchanger
- Maximum mounting angle: 0° front down / 0° front up
- Alternator: 12 Volt / 130 Amp
- Classification: M6
- Emission standards: IMO MARPOL Annex VI Compliant, RCD2 2013/53/EU, EPA Marine Tier 3, BSO 2
- Dry weight: 350 kg [771.6 lbs]
- Horsepower (kW): 200 (147.2)
- Rpm: 3600
- Cylinders / cm³: 4 / 2982
- Gearbox: BRAVO 3
- Reduction: 1.81 BABORD
- Panel: Si4
-
