SKU:
CN T8370E465
€ 79.017,93
1-2 weeks delivery time
-
+
The Nanni Engine T8.370 is a powerful 4-stroke diesel engine designed for marine use, delivering 272 kW (370 hp) with high torque and fuel efficiency. It features a 90° V8 cylinder configuration, direct injection, twin turbocharging, and a closed cooling system. This engine is compliant with EPA marine Tier 3 emissions standards and has a dry weight of 435 kg (959 lbs).
- Description
- Ask a Question
-

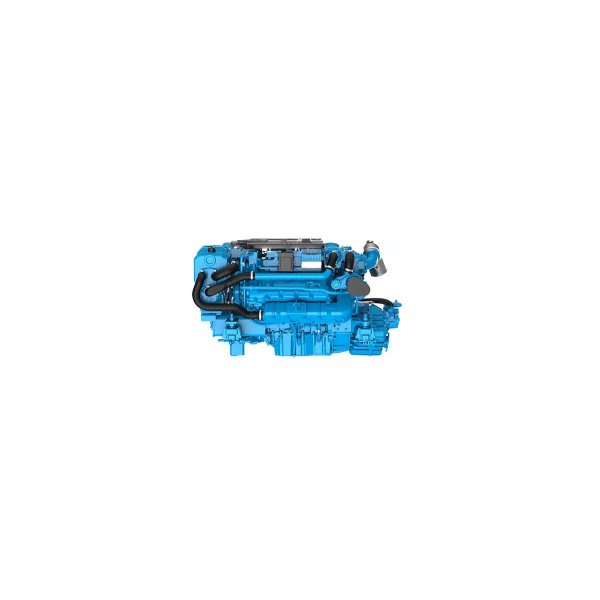

Nanni Engine T8.370
The Nanni Engine T8.370 is a powerful and efficient 4-stroke diesel engine designed for marine applications. It provides strong performance with high torque and optimized fuel efficiency. Here are the key specifications:
- Power at crankshaft: 272 kW [370 hp]
- Displacement: 4,500 l [272 in3]
- Configuration: 8 cylinders V-design 90° 4 valves per cylinder
- Type: 4-stroke diesel
- Bore and stroke: 86 x 96 mm [3.39 x 3.78 in]
- Compression ratio: 15.8 : 1
- Rated speed: 3800 rpm
- Idle speed: 550 rpm
- Peak torque: 806 Nm
- Peak torque speed: 2600 rpm
- Engine base: Toyota
- Fuel system: Direct injection high pressure common rail electronically controlled
- Air intake: Twin turbocharged
- Cooling: Closed cooling with heat exchanger
- Maximum mounting angle: 7° front down / 7° front up
- Alternator: 12 Volt / 120 Amp
- Classification: M6
- Emission standards: EPA marine Tier 3, RCD2 2013/53/EU
- Dry weight with TTM50A: 435 kg [959 lbs]
Gearbox ZF85IV
The ZF85IV is a robust and reliable gearbox designed for marine environments, offering smooth performance and durability. It is paired perfectly with the Nanni Engine T8.370 to ensure seamless power transmission.
- Gearbox: ZF85IV
- Reduction ratio: 2.50
Panel Si4
The Si4 panel is a user-friendly control unit designed to work with the Nanni Engine T8.370, providing easy monitoring and operation. It offers all the necessary information for efficient engine management and operation.
- Panel: Si4
-
