SKU:
CN T8370E445
€ 73.191,71
1-2 weeks delivery time
-
+
The Nanni Engine T8.370 is designed for marine use, offering 370 hp (272 kW) from a 4-stroke diesel engine with a V8, 90° cylinder layout. The engine provides reliable performance with twin turbocharging, high-pressure common rail fuel injection, and a closed-loop cooling system. With a 15.8:1 compression ratio, it operates at a rated speed of 3800 rpm and delivers a peak torque of 806 Nm at 2600 rpm. Paired with the ZF85A gearbox, which has a 2.50 reduction ratio, this engine is perfect for marine propulsion systems.
- Description
- Ask a Question
-

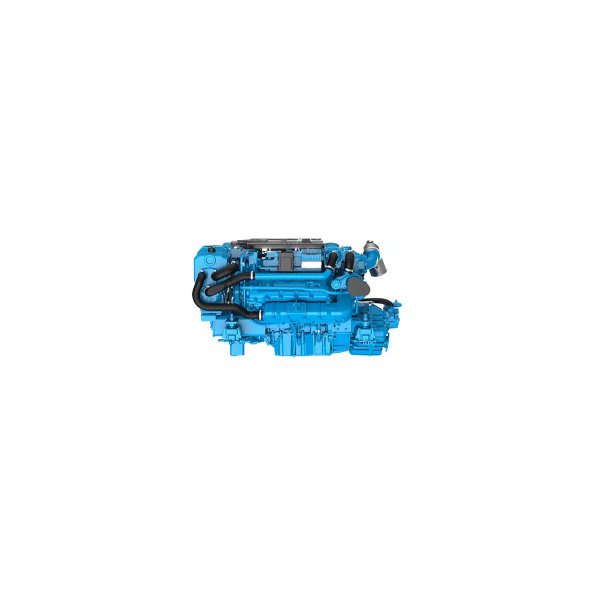

Nanni Engine T8.370
The Nanni Engine T8.370 is a robust and efficient marine engine offering impressive performance for various watercraft. This engine is designed to provide a perfect balance of power and fuel efficiency, ensuring reliable performance under all conditions. Panel is Si4
- Power at crankshaft: 272 kW (370 hp)
- Displacement: 4,500 l (272 in³)
- Configuration: 8 cylinders V-design 90° with 4 valves per cylinder
- Type: 4-stroke diesel engine
- Bore and stroke: 86 x 96 mm (3.39 x 3.78 in)
- Compression ratio: 15.8 : 1
- Rated speed: 3800 rpm
- Idle speed: 550 rpm
- Peak torque: 806 Nm
- Peak torque speed: 2600 rpm
- Engine base: Toyota
- Fuel system: Direct injection high-pressure common rail, electronically controlled
- Air intake: Twin turbocharged
- Cooling system: Closed cooling with heat exchanger
- Maximum mounting angle: 7° front down / 7° front up
- Alternator: 12 Volt / 120 Amp
- Classification: M6
- Emission standards: EPA Marine Tier 3, RCD2 2013/53/EU
- Dry weight with TTM50A: 435 kg (959 lbs)
Gearbox ZF85A
The ZF85A gearbox is designed to match the performance of high-power marine engines. Offering smooth and reliable gear shifting, it ensures optimal transfer of engine power to the propeller.
- Gearbox Model: ZF85A
- Reduction: 2.50
Reduction 2.50
The reduction ratio of 2.50 provides a balance between engine power and propeller speed, ensuring the engine operates efficiently across various conditions.
- Reduction Ratio: 2.50
-
