SKU:
CN T8370E215
€ 73.317,11
1-2 weeks delivery time
-
+

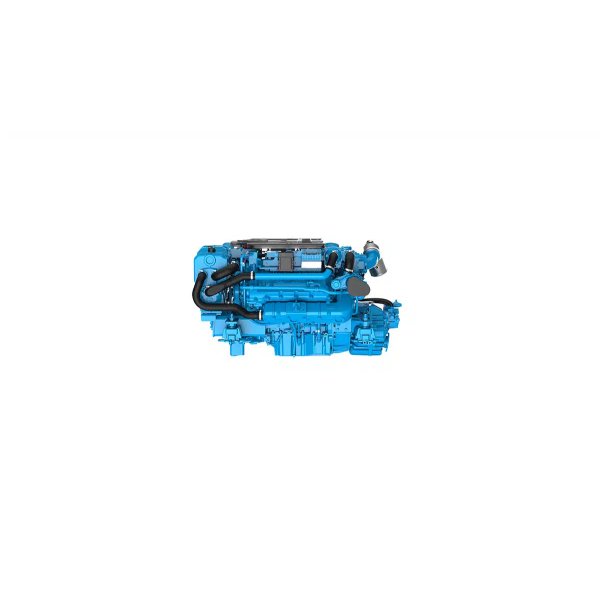

The Nanni Engine T8.370 is a powerful 4-stroke diesel engine offering 370 hp (272 kW) at the crankshaft. It features a V8, 90° cylinder configuration with 4 valves per cylinder and operates at a rated speed of 3800 rpm. Key features include twin turbocharging, direct injection, and a compression ratio of 15.8:1. It also meets EPA marine Tier 3 and RCD2 2013/53/EU emission standards, with a dry weight of 435 kg (959 lbs). The engine is complemented by a ZF68IV gearbox, providing reliable power transmission with a 2.00 reduction ratio.
- Description
- Ask a Question
-
Nanni Engine T8.370
The Nanni Engine T8.370 offers powerful performance with impressive specifications. It is a high-performance diesel engine designed for marine applications, providing 370 horsepower at the crankshaft. Below are the key features:
- Power at crankshaft: 272 kW [370 hp]
- Displacement: 4,500 l [272 in³]
- Configuration: 8 cylinders V-design 90°, 4 valves per cylinder
- Type: 4-stroke diesel engine
- Bore and Stroke: 86 x 96 mm [3.39 x 3.78 in]
- Compression ratio: 15.8:1
- Rated speed: 3800 rpm
- Idle speed: 550 rpm
- Peak torque: 806 Nm
- Peak torque speed: 2600 rpm
- Engine base: Toyota
- Fuel system: Direct injection high-pressure common rail electronically controlled
- Air intake: Twin turbocharged
- Cooling: Closed cooling with heat exchanger
- Maximum mounting angle: 7° front down / 7° front up
- Alternator: 12 Volt / 120 Amp
- Classification: M6
- Emission standards: EPA marine Tier 3, RCD2 2013/53/EU
- Dry weight with TTM50A: 435 kg [959 lbs]
Gearbox ZF68IV
The ZF68IV gearbox pairs perfectly with the Nanni Engine T8.370, providing seamless power transmission. It's designed for efficient performance and durability, making it an ideal choice for marine propulsion systems. Key features include:
- Gearbox: ZF68IV
- Reduction: 2.00
- Panel: Si4
Specifications Overview
Below is a summary of the combined engine and gearbox configuration, providing a holistic view of the powertrain system:
- Horsepower (kW): 370 (272.3)
- Rpm: 3800
- Cylinders/cm³: V8 / 4457
- Gearbox: ZF68IV
- Reduction: 2.00
-
