SKU:
CN T8370E165
€ 69.727,49
1-2 weeks delivery time
-
+
The Nanni Engine T8.370 is a powerful marine engine producing 272 kW (370 hp) with a displacement of 4,500 l (272 in³). This 8-cylinder, 4-stroke diesel engine features a bore and stroke of 86 x 96 mm (3.39 x 3.78 in) and a compression ratio of 15.8:1. It delivers a peak torque of 806 Nm at 2600 rpm and has a rated speed of 3800 rpm. The engine includes a direct injection high-pressure common rail fuel system, twin turbocharging, and a closed cooling system, complying with EPA marine Tier 3 and RCD2 2013/53/EU emission standards.
- Description
- Ask a Question
-

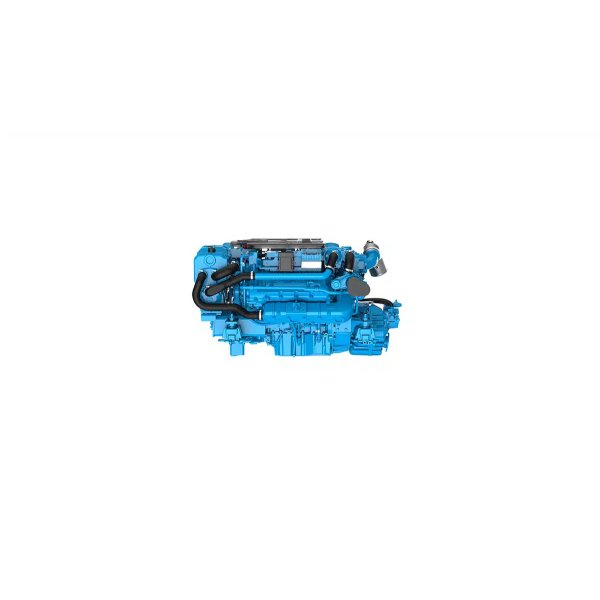

Nanni Engine T8.370
The Nanni Engine T8.370 is a powerful and efficient 4-stroke diesel engine designed for marine applications. Here are the key specifications:
- Power at crankshaft: 272 kW (370 hp)
- Displacement: 4,500 l (272 in³)
- Configuration: 8 cylinders, V-design, 90°, 4 valves per cylinder
- Engine type: 4-stroke diesel
- Bore and stroke: 86 x 96 mm (3.39 x 3.78 in)
- Compression ratio: 15.8:1
- Rated speed: 3800 rpm
- Idle speed: 550 rpm
- Peak torque: 806 Nm
- Peak torque speed: 2600 rpm
- Engine base: Toyota
- Fuel system: Direct injection high pressure common rail electronically controlled
- Air intake: Twin turbocharged
- Cooling: Closed cooling with heat exchanger
- Maximum mounting angle: 7° front down / 7° front up
- Alternator: 12 Volt / 120 Amp
- Classification: M6
- Emission standards: EPA marine Tier 3, RCD2 2013/53/EU
- Dry weight with TTM50A: 435 kg (959 lbs)
Gearbox ZF68A
The ZF68A gearbox is designed to complement high-performance marine engines. It provides reliability and efficiency for smooth operation. Key features include:
- Gearbox type: ZF68A
- Reduction ratio: 2.00
Panel Si4
The Si4 panel offers intuitive controls and monitoring capabilities for marine engines. It integrates seamlessly with various engine systems, providing ease of operation and diagnostics. Key details:
- Panel type: Si4
-
