SKU:
CN T8370E525
€ 73.191,71
1-2 weeks delivery time
-
+
The Nanni Engine T8.370 is a robust marine engine providing 272 kW (370 hp) of power with optimized fuel efficiency. The engine features a V8 configuration, twin turbochargers, and advanced electronic control systems. It complies with EPA marine Tier 3 emission standards and has a dry weight of 435 kg (959 lbs), designed for reliable marine operation.
- Description
- Ask a Question
-

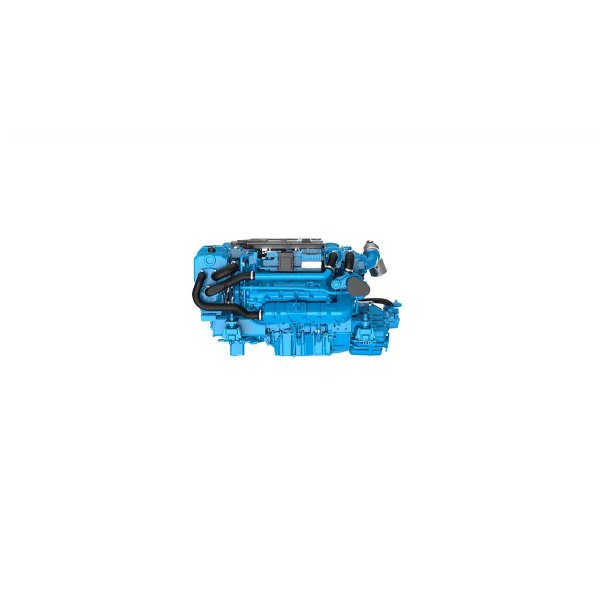

Nanni Engine T8.370
The Nanni Engine T8.370 delivers impressive power and efficiency for various marine applications. This robust engine offers advanced technology for superior performance on the water.
- Power at crankshaft: 272 kW [370 hp]
- Displacement: 4,500 l [272 in³]
- Configuration: 8 cylinders V-design 90° with 4 valves per cylinder
- Engine type: 4-stroke diesel
- Bore and stroke: 86 x 96 mm [3.39 x 3.78 in]
- Compression ratio: 15.8 : 1
- Rated speed: 3800 rpm
- Idle speed: 550 rpm
- Peak torque: 806 Nm
- Peak torque speed: 2600 rpm
- Engine base: Toyota
- Fuel system: Direct injection, high pressure common rail, electronically controlled
- Air intake: Twin turbocharged
- Cooling system: Closed cooling with heat exchanger
- Maximum mounting angle: 7° front down / 7° front up
- Alternator: 12 Volt / 120 Amp
- Classification: M6
- Emission standards: EPA marine Tier 3, RCD2 2013/53/EU
- Dry weight with TTM50A: 435 kg [959 lbs]
Gearbox ZF220
The ZF220 gearbox is a reliable component designed to enhance the efficiency and functionality of the Nanni Engine T8.370. It ensures smooth transitions and optimal performance.
- Gearbox type: ZF220
- Reduction: 2.00
Technical Panel Si4
The Si4 technical panel offers advanced monitoring capabilities, ensuring optimal operation of the Nanni Engine T8.370 with ease of use and comprehensive data visualization.
- Panel type: Si4
-
