SKU:
CN T8370E295
€ 70.642,76
1-2 weeks delivery time
-
+
The Nanni Engine T8.370 provides 370 hp (272 kW) at the crankshaft, powered by a V8, 90° configuration with 4 valves per cylinder. It operates as a 4-stroke diesel engine with a bore and stroke of 86 x 96 mm and a compression ratio of 15.8:1. It is equipped with a high-pressure common rail fuel system, twin turbocharging, and a closed cooling system. The engine's rated speed is 3800 rpm, with a peak torque of 806 Nm at 2600 rpm. Paired with the TTM 50A gearbox, which has a 2.50 reduction ratio, it ensures efficient performance in marine applications.
- Description
- Ask a Question
-

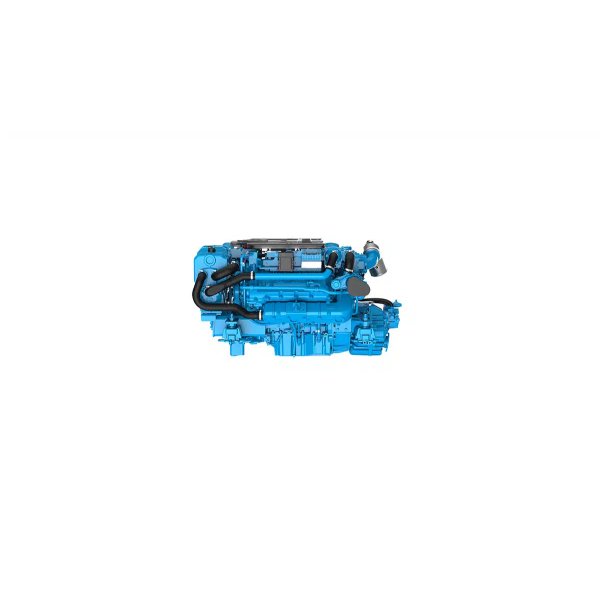

Nanni Engine T8.370
The Nanni Engine T8.370 offers a powerful 4-stroke diesel engine configuration that delivers 272 kW (370 hp) at the crankshaft. Designed with a V8, 90° cylinder layout, this engine provides impressive performance for a range of applications. Here's a closer look at the key specifications:
- Power at crankshaft: 272 kW (370 hp)
- Displacement: 4,500 l (272 in³)
- Engine Configuration: 8 cylinders, V-design 90°, 4 valves per cylinder
- Type: 4-stroke diesel
- Bore and Stroke: 86 x 96 mm (3.39 x 3.78 in)
- Compression ratio: 15.8:1
- Rated speed: 3800 rpm
- Idle speed: 550 rpm
- Peak torque: 806 Nm
- Peak torque speed: 2600 rpm
- Engine base: Toyota
- Fuel system: Direct injection high pressure common rail electronically controlled
- Air intake: Twin turbocharged
- Cooling system: Closed cooling with heat exchanger
- Maximum mounting angle: 7° front down / 7° front up
- Alternator: 12 Volt / 120 Amp
- Classification: M6
- Emission standards: EPA marine Tier 3, RCD2 2013/53/EU
- Dry weight with TTM50A: 435 kg (959 lbs)
Gearbox TTM 50A
The TTM 50A gearbox is a powerful companion for the Nanni Engine T8.370, designed for reliable performance in marine applications. Here are the critical details:
- Gearbox Type: TTM 50A
- Reduction: 2.50
- Panel: Si4
Reduction 2.50
The 2.50 reduction ratio perfectly complements the TTM 50A gearbox, ensuring efficient transmission of power. This ratio contributes to optimal performance at various operational speeds.
- Reduction ratio: 2.50
-
