SKU:
CN T8370EH05
€ 62.994,82
1-2 weeks delivery time
-
+
The Nanni T8.370 Bobtail engine offers impressive performance and reliability without a gearbox, delivering 272 kW (370 hp) from its 8-cylinder, 4-stroke diesel configuration. With a high torque output, twin turbocharging, and advanced fuel systems, it meets EPA marine Tier 3 standards. The engine includes a Si4 panel for monitoring and operates at a rated speed of 3800 rpm with a dry weight of 435 kg (959 lbs).
- Description
- Ask a Question
-

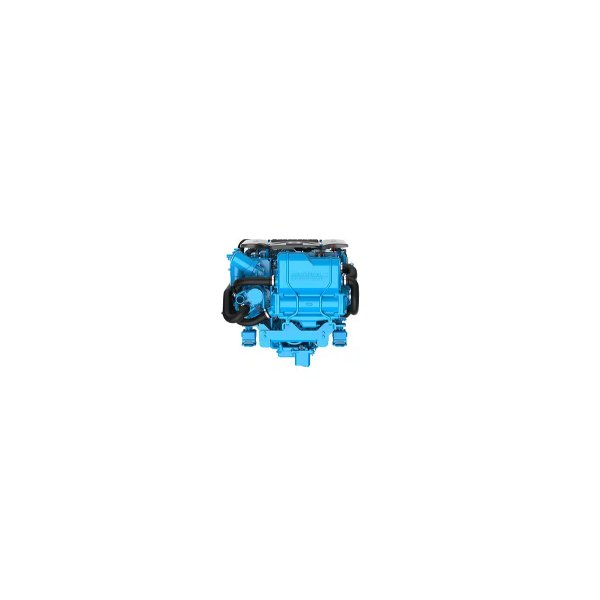

Nanni Engine T8.370 Bobtail, No Gearbox, No Reduction
The Nanni T8.370 Bobtail engine is designed for high performance and reliability. Here are the key specifications:
- Power at crankshaft: 272 kW [370 hp]
- Displacement: 4,500 l [272 in³]
- Configuration: 8 cylinders V-design, 90°, 4 valves per cylinder
- Type: 4-stroke diesel engine
- Bore and stroke: 86 x 96 mm [3.39 x 3.78 in]
- Compression ratio: 15.8 : 1
- Rated speed: 3800 rpm
- Idle speed: 550 rpm
- Peak torque: 806 Nm
- Peak torque speed: 2600 rpm
- Engine base: Toyota
- Fuel system: Direct injection, high pressure common rail, electronically controlled
- Air intake: Twin turbocharged
- Cooling: Closed cooling with heat exchanger
- Maximum mounting angle: 7° front down / 7° front up
- Alternator: 12 Volt / 120 Amp
- Classification: M6
- Emission standards: EPA marine Tier 3, RCD2 2013/53/EU
- Dry weight with TTM50A: 435 kg [959 lbs]
Additional specifications:
- Horsepower (kW): 370 (272.3)
- RPM: 3800
- Cylinders/cm³: V8 / 4457
- Gearbox: -
- Reduction: -
- Panel: Si4
-
