SKU:
CN T8350E175
€ 69.727,49
1-2 weeks delivery time
-
+
The Nanni Engine T8.350 is a high-performance marine engine offering 257 kW [349 hp] power at the crankshaft. With an 8-cylinder, 4-stroke diesel configuration, it provides a bore and stroke of 86 x 96 mm [3.39 x 3.78 in] and a compression ratio of 15.8:1. This engine has a rated speed of 3800 rpm, peak torque of 762 Nm at 2600 rpm, and utilizes a direct injection fuel system with twin turbocharging. It complies with EPA marine Tier 3 and RCD2 2013/53/EU emission standards.
- Description
- Ask a Question
-

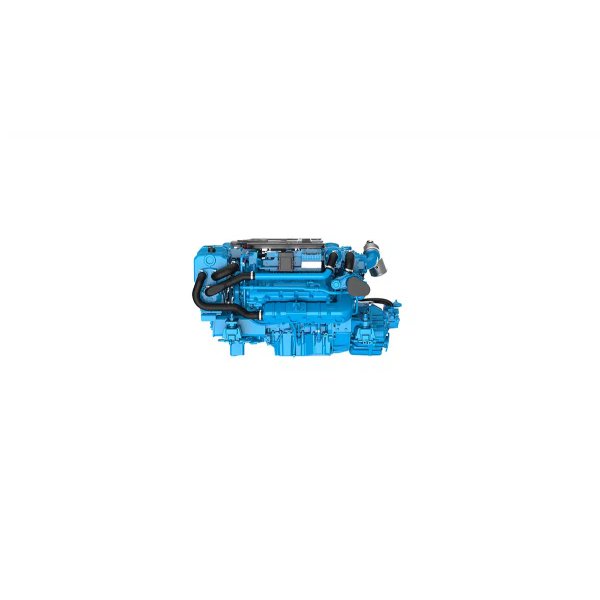

Nanni Engine T8.350
The Nanni Engine T8.350 is a powerful, efficient marine engine with advanced technology to ensure high performance and reliability. Below is an overview of its technical specifications:
- Power at crankshaft: 257 kW [349 hp]
- Displacement: 4,500 l [272 in³]
- Configuration: 8 cylinders V-design 90°
- Type: 4-stroke diesel
- Bore and stroke: 86 x 96 mm [3.39 x 3.78 in]
- Compression ratio: 15.8:1
- Rated speed: 3800 rpm
- Idle speed: 550 rpm
- Peak torque: 762 Nm
- Peak torque speed: 2600 rpm
- Engine base: Toyota
- Fuel system: Direct injection high pressure common rail electronically controlled
- Air intake: Twin turbocharged
- Cooling: Closed cooling with heat exchanger
- Maximum mounting angle: 7° front down / 7° front up
- Alternator: 12 Volt / 120 Amp
- Classification: M6
- Emission standards: EPA marine Tier 3, RCD2 2013/53/EU
- Dry weight with TTM50A: 435 kg [959 lbs]
Gearbox ZF68A
The ZF68A gearbox is a high-quality, reliable component designed for seamless integration with marine engines. It provides efficient transmission of power and ensures smooth operation in challenging marine environments. Key features of the ZF68A gearbox include:
- Gearbox: ZF68A
- Reduction: 2.50
- Panel: Si4
-
