SKU:
CN T8350E165
€ 69.727,49
1-2 weeks delivery time
-
+
The Nanni Engine T8.350 is a robust 4-stroke diesel engine designed for marine applications, delivering 257 kW (349 hp) and offering superior performance. With a displacement of 4,500 l and a V8 cylinder configuration, it features a direct injection fuel system, twin-turbocharging, and a closed cooling system. The engine operates at a rated speed of 3800 rpm and provides impressive torque at 762 Nm. It meets emission standards like EPA marine Tier 3, making it an efficient choice for high-performance marine operations.
- Description
- Ask a Question
-

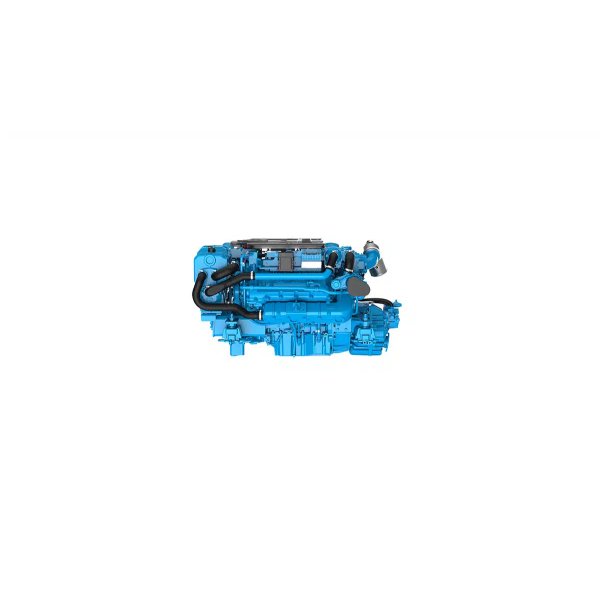

Nanni Engine T8.350
The Nanni Engine T8.350 is a powerful and efficient 4-stroke diesel engine designed for marine applications. With a robust 8-cylinder V-design, this engine delivers impressive performance and reliability, making it a top choice for those looking for high performance on the water.
- Power at crankshaft: 257 kW [349 hp]
- Displacement: 4,500 l [272 in³]
- Configuration: 8 cylinders V-design 90°
- Type: 4-stroke diesel
- Bore and stroke: 86 x 96 mm [3.39 x 3.78 in]
- Compression ratio: 15.8 : 1
- Rated speed: 3800 rpm
- Idle speed: 550 rpm
- Peak torque: 762 Nm
- Peak torque speed: 2600 rpm
- Engine base: Toyota
- Fuel system: Direct injection high pressure common rail electronically controlled
- Air intake: Twin turbocharged
- Cooling: Closed cooling with heat exchanger
- Maximum mounting angle: 7° front down / 7° front up
- Alternator: 12 Volt / 120 Amp
- Classification: M6
- Emission standards: EPA marine Tier 3, RCD2 2013/53/EU
- Dry weight with TTM50A: 435 kg [959 lbs]
Gearbox ZF68A
The ZF68A gearbox is designed for high-performance marine applications, offering durability and smooth operation. It is perfectly matched to the Nanni Engine T8.350 for optimal performance and efficiency.
- Gearbox Model: ZF68A
- Reduction Ratio: 2.00
- Horsepower (kW): 350 (257.6)
- Rated RPM: 3800 rpm
- Cylinders: V8 / 4457 cm³
- Panel Type: Si4
-
