SKU:
CN T8350EH05
€ 62.994,82
1-2 weeks delivery time
-
+
The Nanni Engine T8.350 Bobtail is a robust 4-stroke diesel engine with a power output of 257 kW [349 hp]. Featuring an 8-cylinder V-design, it operates with a bore and stroke of 86 x 96 mm [3.39 x 3.78 in] and a compression ratio of 15.8:1. Its peak torque of 762 Nm is reached at 2600 rpm, with a rated speed of 3800 rpm. The engine is designed with a direct injection fuel system, twin turbocharging, and closed cooling with a heat exchanger, meeting EPA marine Tier 3 and RCD2 2013/53/EU emission standards.
- Description
- Ask a Question
-

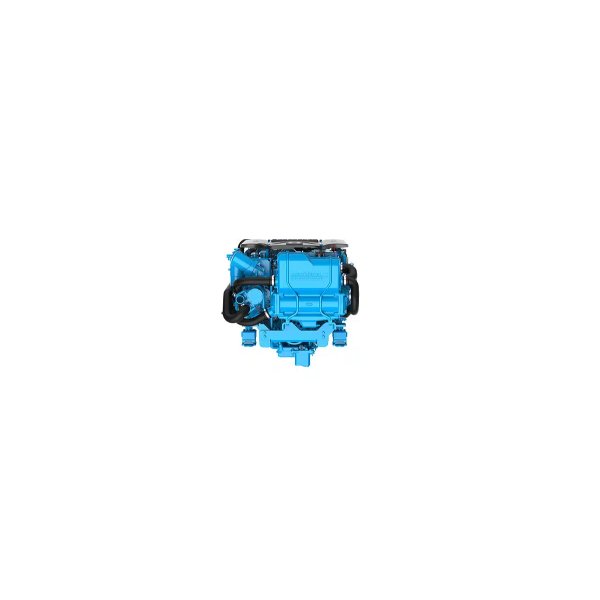

Nanni Engine T8.350 Bobtail, No Gearbox, No Reduction
The Nanni Engine T8.350 Bobtail is a powerful and reliable engine designed to meet various marine demands. Below are the key specifications and features:
- Power at crankshaft: 257 kW [349 hp]
- Displacement: 4,500 l [272 in³]
- Configuration: 8 cylinders V-design 90°
- Type: 4-stroke diesel engine
- Bore and stroke: 86 x 96 mm [3.39 x 3.78 in]
- Compression ratio: 15.8 : 1
- Rated speed: 3800 rpm
- Idle speed: 550 rpm
- Peak torque: 762 Nm
- Peak torque speed: 2600 rpm
- Engine base: Toyota
- Fuel system: Direct injection high pressure common rail electronically controlled
- Air intake: Twin turbocharged
- Cooling: Closed cooling with heat exchanger
- Maximum mounting angle: 7° front down / 7° front up
- Alternator: 12 Volt / 120 Amp
- Classification: M6
- Emission standards: EPA marine Tier 3, RCD2 2013/53/EU
- Dry weight with TTM50A: 435 kg [959 lbs]
- Horsepower (kW): 350 (257.6)
- Rpm: 3800
- Cylinders/cm³: V8 / 4457
- Gearbox: None
- Reduction: None
- Panel: Si4
-
