SKU:
CN T8320E175
€ 70.104,18
1-2 weeks delivery time
-
+
The Nanni Engine T8.320 ZF68A 2,5/1 is a high-performance 4-stroke diesel engine designed for marine applications, offering impressive power and efficiency. With a 235 kW (320 hp) output, a displacement of 4,500 l, and an 8-cylinder V-design configuration, it is engineered for reliability and optimal performance. Featuring a direct injection fuel system, twin-turbocharging, and a closed cooling system, it meets strict emission standards like EPA marine Tier 3. Additionally, it includes a ZF68A gearbox with a 2.5 reduction ratio for smooth operation.
- Description
- Ask a Question
-

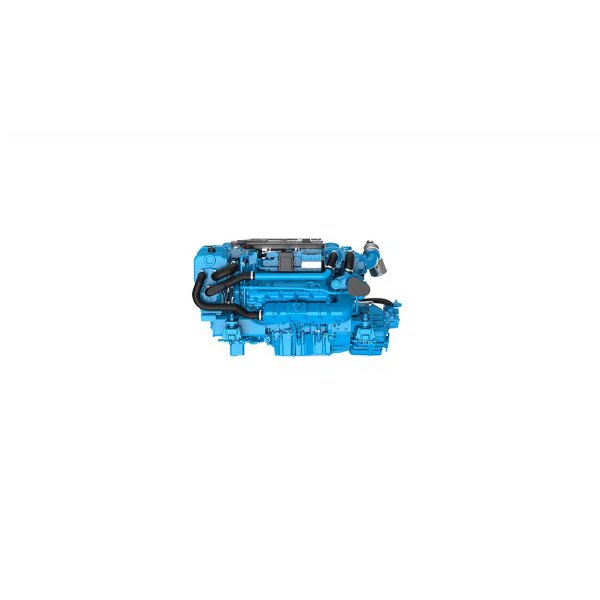

Nanni Engine T8.320 ZF68A 2,5/1
The Nanni Engine T8.320 is a powerful 4-stroke diesel engine that delivers impressive performance, designed for various marine applications. This engine is known for its reliability and efficiency, with specifications that cater to demanding environments.
- Power at crankshaft: 235 kW [320 hp]
- Displacement: 4,500 l [272 in3]
- Configuration: 8 cylinders V-design 90°
- Type: 4-stroke diesel
- Bore and stroke: 86 x 96 mm [3.39 x 3.78 in]
- Compression ratio: 15.8 : 1
- Rated speed: 3800 rpm
- Idle speed: 550 rpm
- Peak torque: 697 Nm
- Peak torque speed: 2500 rpm
- Engine base: Toyota
- Fuel system: Direct injection high pressure common rail electronically controlled
- Air intake: Twin turbocharged
- Cooling: Closed cooling with heat exchanger
- Maximum mounting angle: 7° front down / 7° front up
- Alternator: 12 Volt / 120 Amp
- Classification: M6
- Emission standards: EPA marine Tier 3, RCD2 2013/53/EU
- Dry weight with TTM50A: 435 kg [959 lbs]
Additional Specifications
This engine is equipped with a high-performance gearbox and features that enhance its overall efficiency and ease of operation. It meets rigorous environmental standards while providing maximum output for marine use.
- Horsepower (kW): 320 (235.5)
- RPM: 3800
- Cylinders/cm³: V8 / 4457
- Gearbox: ZF68A
- Reduction: 2.50
- Panel: Si4
-
