SKU:
CN T8320E165
€ 69.727,49
1-2 weeks delivery time
-
+

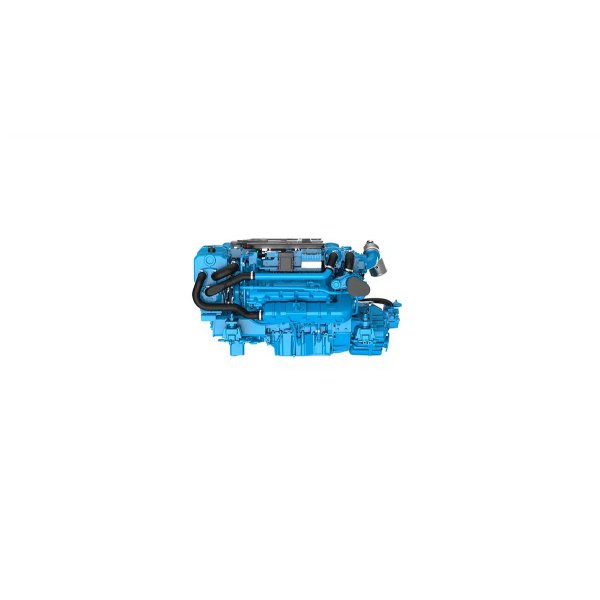

The Nanni Engine T8.320 ZF68A 2/1 is an 8-cylinder V-design engine providing 320 hp (235.5 kW) with a displacement of 4,500 liters. It is equipped with a twin-turbocharged air intake, direct injection high-pressure common rail fuel system, and a closed cooling system, delivering high efficiency for marine applications. Operating at 3800 rpm, it produces a peak torque of 697 Nm at 2500 rpm. The engine comes with the ZF68A gearbox and a reduction ratio of 2.00. With a dry weight of 435 kg, it meets EPA marine Tier 3 and RCD2 emission standards, making it a strong, environmentally compliant option for heavy-duty use.
- Description
- Ask a Question
-
Nanni Engine T8.320 ZF68A 2/1
The Nanni Engine T8.320 ZF68A 2/1 offers impressive performance for marine applications. Here’s an overview of the key specifications:
- Power at crankshaft: 235 kW [320 hp]
- Displacement: 4,500 l [272 in³]
- Configuration: 8 cylinders V-design 90°
- Type: 4-stroke diesel
- Bore and stroke: 86 x 96 mm [3.39 x 3.78 in]
- Compression ratio: 15.8:1
- Rated speed: 3800 rpm
- Idle speed: 550 rpm
- Peak torque: 697 Nm
- Peak torque speed: 2500 rpm
- Engine base: Toyota
- Fuel system: Direct injection high pressure common rail electronically controlled
- Air intake: Twin turbocharged
- Cooling: Closed cooling with heat exchanger
- Maximum mounting angle: 7° front down / 7° front up
- Alternator: 12 Volt / 120 Amp
- Classification: M6
- Emission standards: EPA marine Tier 3, RCD2 2013/53/EU
- Dry weight with TTM50A: 435 kg [959 lbs]
Engine Specifications
The Nanni Engine T8.320 provides high output and advanced features designed for heavy-duty use. Here’s a breakdown of the technical performance:
- Horsepower (kW): 320 (235.5)
- RPM: 3800
- Cylinders/cm³: V8 / 4457
- Gearbox: ZF68A
- Reduction: 2.00
- Panel: Si4
-
