SKU:
CN T8320EH05
€ 62.994,82
1-2 weeks delivery time
-
+
The Nanni Engine T8.320 without the gearbox is a powerful 4-stroke diesel engine built for marine use, providing 235 kW (320 hp) and a displacement of 4,500 l. It boasts an 8-cylinder V-design with advanced features like direct injection and twin turbocharging for better fuel efficiency and performance. It also meets EPA marine Tier 3 and RCD2 emission standards. This version does not include the ZF68A gearbox, which is part of the separate T8.320 configuration.
- Description
- Ask a Question
-

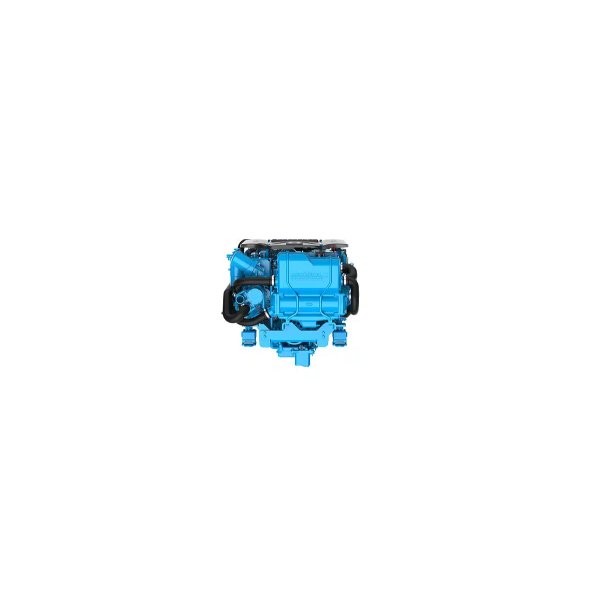

Nanni Engine T8.320, No Gearbox
The Nanni Engine T8.320 is a high-performance 4-stroke diesel engine, designed to deliver exceptional power and efficiency for marine applications. Below are the key specifications that define its remarkable capabilities.
- Power at crankshaft: 235 kW [320 hp]
- Displacement: 4,500 l [272 in3]
- Configuration: 8 cylinders V-design 90°
- Type: 4-stroke diesel
- Bore and stroke: 86 x 96 mm [3.39 x 3.78 in]
- Compression ratio: 15.8 : 1
- Rated speed: 3800 rpm
- Idle speed: 550 rpm
- Peak torque: 697 Nm
- Peak torque speed: 2500 rpm
- Engine base: Toyota
- Fuel system: Direct injection high-pressure common rail electronically controlled
- Air intake: Twin turbocharged
- Cooling: Closed cooling with heat exchanger
- Maximum mounting angle: 7° front down / 7° front up
- Alternator: 12 Volt / 120 Amp
- Classification: M6
- Emission standards: EPA marine Tier 3, RCD2 2013/53/EU
- Dry weight with TTM50A: 435 kg [959 lbs]
Additional Information:
- Horsepower (kW): 320 (235,5)
- Rpm: 3800
- Cylinders/cm³: V8 / 4457
- Gearbox: -
- Reduction: -
- Panel: Si4
-
