Nanni Engine T4.270, Gearbox ZF68 A, Reduction 2.50

SKU: CN T4270E175

€ 43.486,48

1-2 weeks delivery time

- +

Add to cart

The Nanni Engine T4.270 is a robust marine engine offering impressive power and efficiency. With a displacement of 2,982 cm³ and a turbocharged, intercooled air intake system, this 4-stroke diesel engine generates 265 hp (194.9 kW) at 3600 rpm, achieving a peak torque of 660 Nm at 2000 rpm. It adheres to emission standards such as IMO Annex VI and EPA Marine Tier 3. Designed without a gearbox or reduction, this engine is suited for versatile applications with the Si4 panel for performance monitoring.

Description
Ask a Question

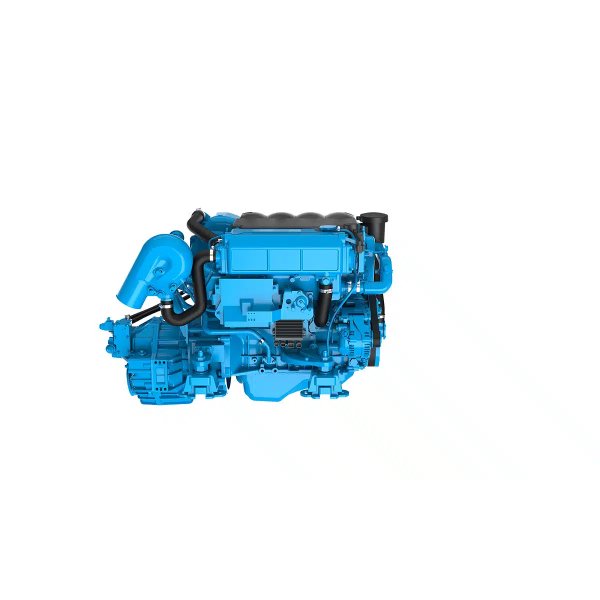

Nanni Engine T4.270

The Nanni Engine T4.270 is a robust marine engine offering impressive power and performance. Here are the key specifications of this engine:
- Power at crankshaft: 194.9 kW [265 hp]
- Displacement: 2,982 l [182 in³]
- Configuration: 4 cylinders in line
- Type: 4-stroke diesel
- Bore and stroke: 96 x 103 mm [3.78 x 4.06 in]
- Compression ratio: 15:1
- Rated speed: 3600 rpm
- Idle speed: 730 rpm
- Peak torque: 660 Nm
- Peak torque speed: 2000 rpm
- Engine base: Toyota
- Fuel system: Direct injection, high pressure common rail electronically controlled
- Air intake: Turbocharged & intercooled
- Cooling: Closed cooling with heat exchanger
- Maximum mounting angle: 7° front down / 7° front up
- Alternator: 12 Volt / 130 Amp
- Classification: M6
- Emission standards: IMO Annex VI Compliant, EPA marine Tier 3, RCD 2013/53/EU & BSO2
- Dry weight with TTM50A: 393 kg [866 lbs]
Gearbox ZF68 A

The ZF68 A gearbox is designed to deliver smooth and efficient power transfer for marine applications. Below are the important features:
- Gearbox model: ZF68 A
- Reduction ratio: 2.50
Additional Specifications

Other important specifications related to the engine and its configuration:
- Horsepower (kW): 265 (194.9)
- RPM: 3600
- Cylinders: 4 / 2982
- Panel: Si4
