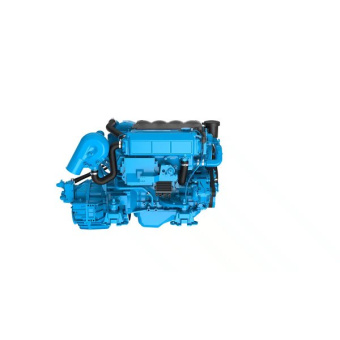

Nanni Engine T4.270, Gearbox ZF68 A, Reduction 2.04

SKU: CN T4270E165

€ 43.486,48

1-2 weeks delivery time

- +

Add to cart

The Nanni Engine T4.270 is a high-performance 4-stroke diesel engine providing 265 hp (194.9 kW) with a 2,982 cm³ displacement. Its robust turbocharged and intercooled air intake system ensures maximum efficiency, while the engine operates at a rated speed of 3600 rpm with a peak torque of 660 Nm at 2000 rpm. Compliant with IMO Annex VI and EPA Marine Tier 3 standards, it offers reliability and efficiency for marine use. Like the Z4.230, it is designed without a gearbox or reduction, allowing for a flexible application setup.

Description
Ask a Question

Nanni Engine T4.270

The Nanni Engine T4.270 offers a robust and efficient power system for various marine applications. With its reliable specifications, it's designed to deliver high performance while meeting rigorous emission standards.
- Power at crankshaft: 194.9 kW [265 hp]
- Displacement: 2,982 l [182 in3]
- Configuration: 4 cylinders in line
- Type: 4-stroke diesel
- Bore and stroke: 96 x 103 mm [3.78 x 4.06 in]
- Compression ratio: 15 : 1
- Rated speed: 3600 rpm
- Idle speed: 730 rpm
- Peak torque: 660 Nm
- Peak torque speed: 2000 rpm
- Engine base: Toyota
- Fuel system: Direct injection, high pressure common rail electronically controlled
- Air intake: Turbocharged & intercooled
- Cooling: Closed cooling with heat exchanger
- Maximum mounting angle: 7° front down / 7° front up
- Alternator: 12 Volt / 130 Amp
- Classification: M6
- Emission standards: IMO Annex VI Compliant, EPA marine Tier 3, RCD 2013/53/EU & BSO2
- Dry weight with TTM50A: 393 kg [866 lbs]
Gearbox ZF68 A

The ZF68 A gearbox is a vital part of marine transmission systems, designed for optimal performance and durability. It ensures smooth power transfer and operates efficiently in demanding conditions.
- Gearbox Model: ZF68 A
- Reduction Ratio: 2.04
Panel Si4

The Si4 panel is a crucial component for monitoring and controlling engine performance. It provides easy-to-read data for operators, ensuring safe and efficient operation of marine engines.
- Panel Model: Si4
