SKU:
CN T4270EH05
€ 40.675,34
1-2 weeks delivery time
-
+

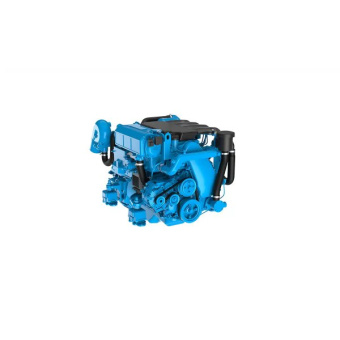

The Nanni Engine T4.270 Bobtail is a high-performance marine engine offering 265 hp (194.9 kW) and a 2,982 cm³ displacement. This engine, equipped with turbocharging and intercooling, operates at a rated speed of 3600 rpm and delivers a peak torque of 660 Nm at 2000 rpm. It meets stringent emission standards, including IMO Annex VI and EPA Marine Tier 3, ensuring its efficiency and reliability. Without a gearbox or reduction, the T4.270 Bobtail is versatile, ideal for applications requiring a straightforward engine setup, monitored through the Si4 panel.
- Description
- Ask a Question
-
Nanni Engine T4.270 Bobtail, No Gearbox, No Reduction
This engine is designed for high performance and reliability, providing impressive power and efficiency. Below are the technical specifications:
- Power at crankshaft: 194.9 kW [265 hp]
- Displacement: 2,982 l [182 in3]
- Configuration: 4 cylinders in line
- Type: 4-stroke diesel engine
- Bore and Stroke: 96 x 103 mm [3.78 x 4.06 in]
- Compression Ratio: 15 : 1
- Rated Speed: 3600 rpm
- Idle Speed: 730 rpm
- Peak Torque: 660 Nm
- Peak Torque Speed: 2000 rpm
- Engine Base: Toyota
- Fuel System: Direct injection, high pressure common rail, electronically controlled
- Air Intake: Turbocharged & intercooled
- Cooling: Closed cooling with heat exchanger
- Maximum Mounting Angle: 7° front down / 7° front up
- Alternator: 12 Volt / 130 Amp
- Classification: M6
- Emission Standards: IMO Annex VI Compliant, EPA marine Tier 3, RCD 2013/53/EU & BSO2
- Dry Weight with TTM50A: 393 kg [866 lbs]
Additional Information:
- Horsepower: 265 hp (194.9 kW)
- RPM: 3600
- Cylinders: 4 / 2982 cm³
- Gearbox: None
- Reduction: None
- Panel: Si4
-
