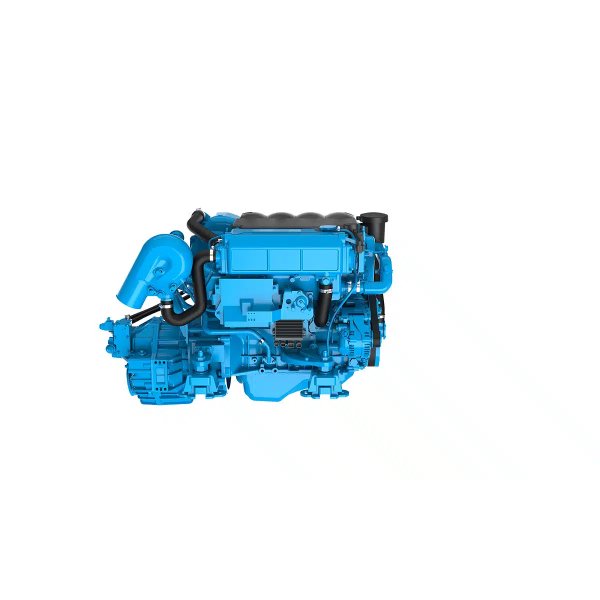

Nanni Engine T4.230 - Gearbox TTM 40A, Reduction 2.04

SKU: CN T4230E255

€ 41.188,24

1-2 weeks delivery time

- +

Add to cart

The Nanni Engine T4.230 is a robust 230 hp engine equipped with the TTM 40A gearbox and a 2.04 reduction ratio. With a displacement of 2,982 cm³, it operates at a rated speed of 3,600 rpm and delivers a peak torque of 569 Nm at 2,000 rpm. The engine’s direct injection fuel system, turbocharging, and closed cooling ensure efficient performance. It also meets environmental standards like IMO Annex VI and EPA Marine Tier 3. The total weight of this engine with its gearbox is 393 kg.

Description
Ask a Question

Nanni Engine T4.230 - Gearbox TTM 40A, Reduction 2.04

The Nanni Engine T4.230 is a powerful and reliable engine designed for demanding applications. With a robust 230 hp (169.1 kW) output and exceptional performance features, this engine is perfect for marine and industrial use.
- Power at crankshaft: 169.1 kW (230 hp)
- Displacement: 2,982 l (182 in³)
- Configuration: 4 cylinders in line
- Type: 4-stroke diesel engine
- Bore and stroke: 96 x 103 mm (3.78 x 4.06 in)
- Compression ratio: 15 : 1
- Rated speed: 3600 rpm
- Idle speed: 730 rpm
- Peak torque: 569 Nm
- Peak torque speed: 2000 rpm
- Engine base: Toyota
- Fuel system: Direct injection, high pressure common rail, electronically controlled
- Air intake: Turbocharged & intercooled
- Cooling: Closed cooling with heat exchanger
- Maximum mounting angle: 7° front down / 7° front up
- Alternator: 12 Volt / 130 Amp
- Classification: M6
- Emission standards: IMO Annex VI Compliant, EPA Marine Tier 3, RCD 2013/53/EU & BSO2
- Dry weight with TTM50A: 393 kg (866 lbs)
This engine is designed to deliver consistent performance while meeting stringent environmental standards, ensuring it is a top choice for both commercial and recreational marine applications.

Technical Specifications

The Nanni Engine T4.230 is equipped with the TTM 40A gearbox, which ensures optimal performance under varying load conditions. The reduction ratio of 2.04 helps to improve the overall efficiency of the engine, making it an excellent option for demanding tasks.
- Horsepower: 230 (169.2 kW)
- RPM: 3600
- Cylinders: 4 / 2982 cm³
- Gearbox: TTM 40A
- Reduction: 2.04
- Panel: Si4
The gearbox and engine configuration ensure efficient operation and durability, making the Nanni Engine T4.230 an ideal choice for anyone seeking reliability and long-lasting power.
