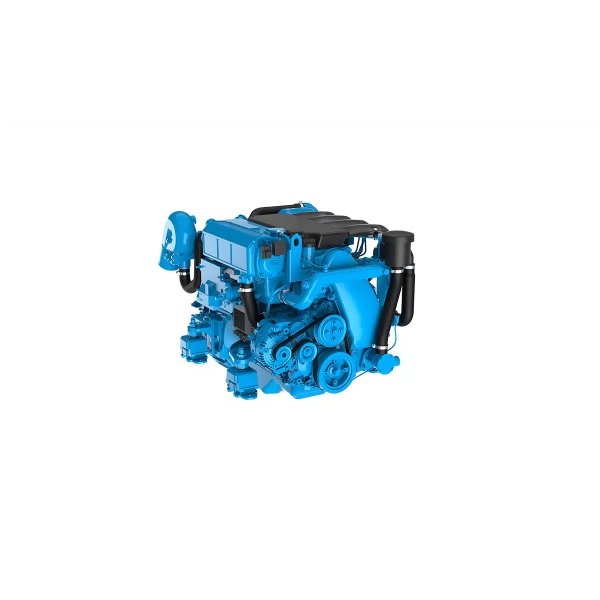

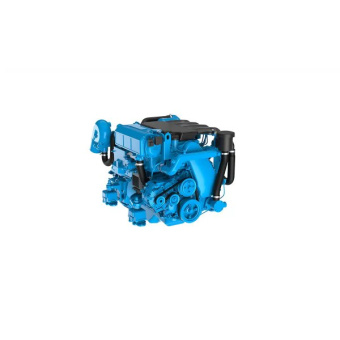

Nanni Engine T4.230 Bobtail, No Gearbox, No Reduction

SKU: CN T4230EH05

€ 39.168,85

1-2 weeks delivery time

- +

Add to cart

The Nanni Engine T4.230 Bobtail is a powerful 230 hp engine, featuring a 2,982 cm³ displacement and a turbocharged, intercooled air intake. Without a gearbox or reduction, this engine operates at a rated speed of 3,600 rpm and delivers peak torque of 569 Nm at 2,000 rpm. The engine complies with emissions standards like EPA Marine Tier 3 and IMO Annex VI. It is designed for durability and reliability, with a dry weight of 393 kg when paired with the TTM 50A gearbox.

Description
Ask a Question

Nanni Engine T4.230 Bobtail, No Gearbox, No Reduction

The Nanni Engine T4.230 Bobtail is a powerful marine engine, offering reliable performance for various marine applications. Below are the key features and specifications of this engine:
- Power at crankshaft: 169.1 kW [230 hp]
- Displacement: 2,982 l [182 in³]
- Configuration: 4 cylinders in line
- Engine Type: 4-stroke diesel
- Bore and Stroke: 96 x 103 mm [3.78 x 4.06 in]
- Compression Ratio: 15 : 1
- Rated Speed: 3600 rpm
- Idle Speed: 730 rpm
- Peak Torque: 569 Nm
- Peak Torque Speed: 2000 rpm
- Engine Base: Toyota
- Fuel System: Direct injection, high pressure common rail electronically controlled
- Air Intake: Turbocharged & intercooled
- Cooling: Closed cooling with heat exchanger
- Maximum Mounting Angle: 7° front down / 7° front up
- Alternator: 12 Volt / 130 Amp
- Classification: M6
- Emission Standards: IMO Annex VI Compliant, EPA marine Tier 3, RCD 2013/53/EU & BSO2
- Dry Weight with TTM50A: 393 kg [866 lbs]
Engine Performance and Specifications

With a horsepower of 230 (169.2 kW), this engine is designed to provide robust power and efficiency. Here's a quick summary of its performance:
- Horsepower: 230 hp (169.2 kW)
- Rated RPM: 3600 rpm
- Cylinders: 4 / 2982 cm³
- Gearbox: None
- Reduction: None
- Panel: Si4
