SKU:
CN T4205EH05
€ 36.480,44
1-2 weeks delivery time
-
+

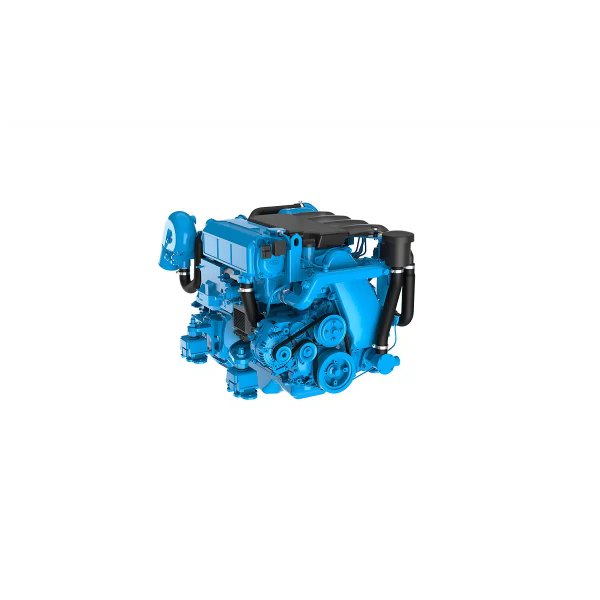

The Nanni Engine T4.205 Bobtail is a powerful 4-stroke diesel engine designed for marine environments, delivering 200 hp (147.2 kW) at 3600 rpm. It has a 4-cylinder in-line configuration and a displacement of 2982 cm³. With a direct injection fuel system, turbocharged and intercooled air intake, and a closed cooling system, this engine is built for performance. It meets various emission standards like IMO Annex VI and EPA Marine Tier 3, and has a dry weight of 393 kg (866 lbs).
- Description
- Ask a Question
-
Nanni Engine T4.205 Bobtail, No Gearbox, No Reduction
The Nanni Engine T4.205 Bobtail is a robust and high-performance diesel engine designed for marine use. It delivers exceptional power and efficiency with a range of features suited for demanding environments.
- Horsepower: 200 hp (147.2 kW)
- Rated Speed: 3600 rpm
- Cylinders: 4 cylinders / 2982 cm³
- Displacement: 2,982 l [182 in³]
- Engine Configuration: 4-cylinder inline
- Engine Type: 4-stroke diesel
- Bore and Stroke: 96 x 103 mm [3.78 x 4.06 in]
- Compression Ratio: 15:1
- Idle Speed: 730 rpm
- Peak Torque: 501 Nm
- Peak Torque Speed: 2000 rpm
- Engine Base: Toyota
- Fuel System: Direct injection, high-pressure common rail, electronically controlled
- Air Intake: Turbocharged & Intercooled
- Cooling: Closed cooling with heat exchanger
- Maximum Mounting Angle: 7° front down / 7° front up
- Alternator: 12 Volt / 130 Amp
- Classification: M6
- Emission Standards: IMO Annex VI Compliant, EPA Marine Tier 3, RCD 2013/53/EU, & BSO2
- Dry Weight (with TTM50A): 393 kg [866 lbs]
-
