SKU:
CN T4205E255
€ 39.859,58
1-2 weeks delivery time
-
+
The Nanni Engine T4.205 is a high-performance 4-stroke diesel engine that provides 200 hp (147.2 kW) at 3600 rpm. It features a 4-cylinder in-line configuration with a displacement of 2982 cm³ and offers excellent fuel efficiency for marine applications. Key features include a turbocharged and intercooled air intake, direct injection fuel system, and a closed cooling system with a heat exchanger. The engine complies with emission standards such as IMO Annex VI and EPA Marine Tier 3, with a dry weight of 393 kg (866 lbs).
- Description
- Ask a Question
-

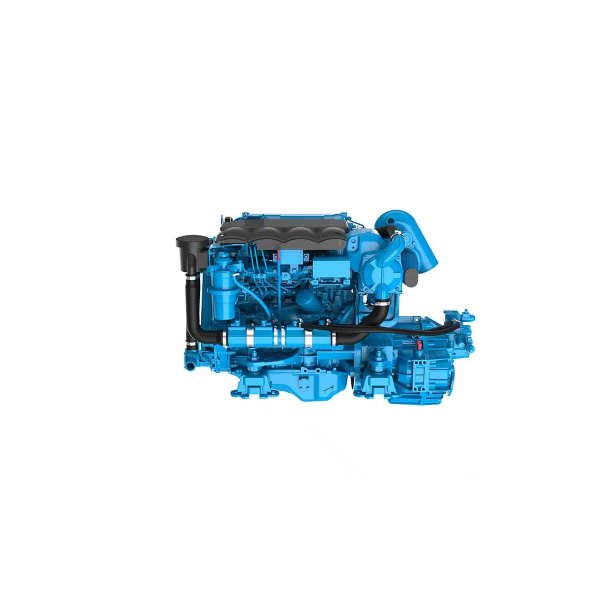

Nanni Engine T4.205
The Nanni Engine T4.205 is a high-performance 4-stroke diesel engine designed to provide reliable power and efficiency for various marine applications. Below are its key specifications:
- Horsepower (kW): 200 (147.2)
- RPM: 3600
- Cylinders: 4 / 2982 cm³
- Gearbox: TTM 40A
- Reduction: 2.04
- Panel: Si4
- Power at crankshaft: 147.2 kW [200 hp]
- Displacement: 2,982 l [182 in³]
- Configuration: 4 cylinders in line
- Type: 4-stroke diesel
- Bore and stroke: 96 x 103 mm [3.78 x 4.06 in]
- Compression ratio: 15 : 1
- Rated speed: 3600 rpm
- Idle speed: 730 rpm
- Peak torque: 501 Nm
- Peak torque speed: 2000 rpm
- Engine base: Toyota
- Fuel system: Direct injection, high pressure common rail electronically controlled
- Air intake: Turbocharged & intercooled
- Cooling: Closed cooling with heat exchanger
- Maximum mounting angle: 7° front down / 7° front up
- Alternator: 12 Volt / 130 Amp
- Classification: M6
- Emission standards: IMO Annex VI Compliant, EPA marine Tier 3, RCD 2013/53/EU & BSO2
- Dry weight with TTM50A: 393 kg [866 lbs]
-
