SKU:
CN T6420E174
€ 47.078,10
1-2 weeks delivery time
-
+
The Nanni Engine 6.420 TDI is a powerful, reliable engine designed for high efficiency and durability. With a displacement of 4.2 liters and a 320 hp output, it features advanced technology such as turbocharging and intercooling, a high compression ratio of 15.7:1, and a peak torque of 804 Nm. It operates at a rated speed of 3600 rpm and has a low idle speed of 700 rpm, making it suitable for various applications that require precision and robustness.
- Description
- Ask a Question
-

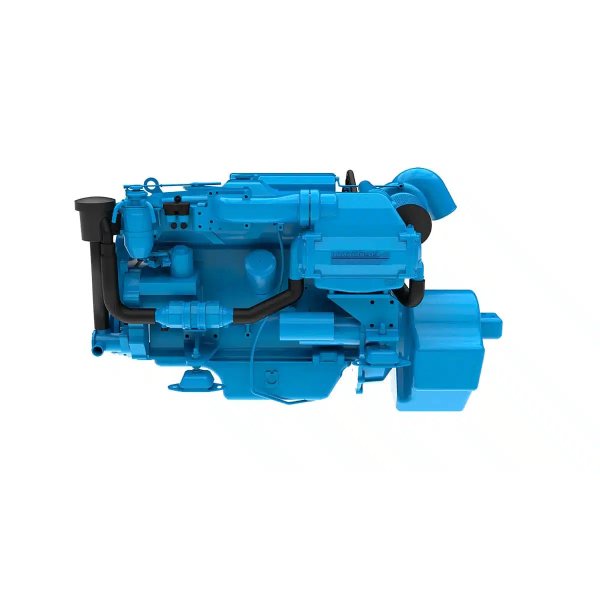

Nanni Engine 6.420 TDI
This powerful engine delivers reliable performance with advanced features designed for high efficiency and durability. Ideal for a variety of applications, it combines precision engineering with cutting-edge technology.
- Power at crankshaft: 320 hp (235.5 kW)
- Displacement: 4,200 L (254 in³)
- Configuration: 6 cylinders in line
- Engine type: 4-stroke diesel
- Bore and stroke: 94 x 100 mm (3.70 x 3.94 in)
- Compression ratio: 15.7:1
- Rated speed: 3600 rpm
- Idle speed: 700 rpm
- Peak torque: 804 Nm
- Peak torque speed: 2400 rpm
- Engine base: Toyota
- Fuel system: Direct injection mechanically controlled
- Air intake: Turbocharged & intercooled
- Cooling: Closed cooling with heat exchanger
- Maximum mounting angle: 0° front down / 7° front up
- Alternator: 12 Volt / 80 Amp
- Classification: M6
- Emission standards: GFO2
- Dry weight with TTM50A: 469 kg (1034 lbs)
ZF68A Gearbox
The ZF68A gearbox is engineered to provide smooth and efficient power transmission. Its reliability and high performance make it an essential component for demanding applications.
- Gearbox model: ZF68A
- Reduction ratio: 2.50
- Panel: C4
-
