The Nanni Engine 6.420 TDI is a high-performance, 4-stroke diesel engine designed for marine applications. It offers 320 hp (235.5 kW) of power, with a displacement of 4,200 L and a compression ratio of 15.7:1. The engine features a turbocharged and intercooled air intake system, closed-loop cooling with a heat exchanger, and a mechanically controlled direct injection fuel system. It operates efficiently at a rated speed of 3600 rpm and a peak torque of 804 Nm at 2400 rpm, and it has a dry weight of 469 kg.
- Description
- Ask a Question
-

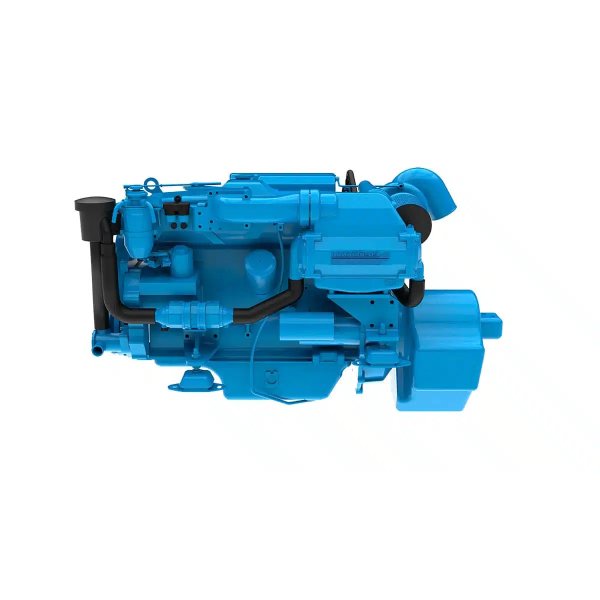

Nanni Engine 6.420 TDI
The Nanni Engine 6.420 TDI is a powerful, high-performance marine engine, designed for exceptional reliability and efficiency. Here are the key specifications:
- Power at crankshaft: 235.5 kW (320 hp)
- Displacement: 4,200 L (254 in³)
- Configuration: 6 cylinders in line
- Type: 4-stroke diesel
- Bore and Stroke: 94 x 100 mm (3.70 x 3.94 in)
- Compression ratio: 15.7:1
- Rated speed: 3600 rpm
- Idle speed: 700 rpm
- Peak torque: 804 Nm
- Peak torque speed: 2400 rpm
- Engine base: Toyota
- Fuel system: Direct injection, mechanically controlled
- Air intake: Turbocharged & intercooled
- Cooling system: Closed cooling with heat exchanger
- Maximum mounting angle: 0° front down / 7° front up
- Alternator: 12 Volt / 80 Amp
- Classification: M6
- Emission standards: GFO2
- Dry weight with TTM50A: 469 kg (1034 lbs)
Gearbox ZF68A
The ZF68A gearbox is engineered to complement the Nanni Engine 6.420 TDI. It offers exceptional reliability and precision in transmitting power from the engine to the propeller. Key details are listed below:
- Gearbox model: ZF68A
- Reduction ratio: 2.00
- Panel: C4
-
