SKU:
CN T6420EH04
€ 40.267,04
1-2 weeks delivery time
-
+
The Nanni Engine 6.420 TDI Bobtail is a high-performance 6-cylinder diesel engine, offering 320 hp (235.5 kW) and a displacement of 4,200 liters. It features a turbocharged and intercooled air intake system, direct injection fuel system, and a closed cooling system. Designed for industrial and marine applications, it operates efficiently at a rated speed of 3600 rpm and provides a peak torque of 804 Nm at 2400 rpm. The engine is based on Toyota technology and has a dry weight of 469 kg, making it a robust and reliable choice for demanding tasks.
- Description
- Ask a Question
-

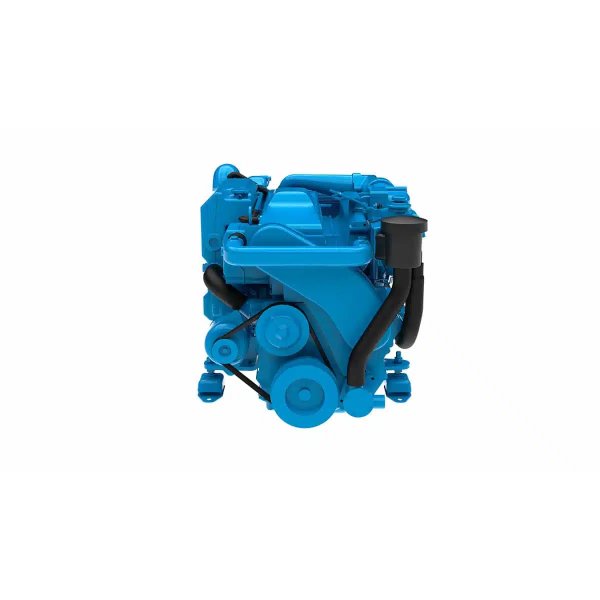

Nanni Engine 6.420 TDI Bobtail
Discover the power and efficiency of the Nanni Engine 6.420 TDI Bobtail, an advanced engine designed for optimal performance. This robust 6-cylinder engine offers reliable power and a sleek design, perfect for various applications.
- Power at crankshaft: 320 hp (235.5 kW)
- Displacement: 4,200 l (254 in³)
- Configuration: 6 cylinders in line
- Type: 4-stroke diesel
- Bore and stroke: 94 x 100 mm (3.70 x 3.94 in)
- Compression ratio: 15.7 : 1
- Rated speed: 3600 rpm
- Idle speed: 700 rpm
- Peak torque: 804 Nm
- Peak torque speed: 2400 rpm
- Engine base: Toyota
- Fuel system: Direct injection mechanically controlled
- Air intake: Turbocharged & intercooled
- Cooling: Closed cooling with heat exchanger
- Maximum mounting angle: 0° front down / 7° front up
- Alternator: 12 Volt / 80 Amp
- Classification: M6
- Emission standards: GFO2
- Dry weight with TTM50A: 469 kg (1034 lbs)
Technical Specifications
The Nanni Engine 6.420 TDI Bobtail delivers impressive technical specifications for industrial and marine applications. Here are the key features:
- Horsepower: 320 hp (235.5 kW)
- RPM: 3600
- Cylinders: 6 cylinders (4163 cm³)
- Gearbox: Not included
- Reduction: Not included
- Panel: C4
-
