SKU:
CN N09510J00004
€ 82.363,55
1-2 weeks delivery time
-
+
The John Deere Type Engine N9.510 CR2 is a high-performance marine engine, delivering robust power and efficiency. It features a 6-cylinder, 4-stroke diesel engine with a high-pressure common rail fuel system and turbocharged air-to-seawater aftercooler. Designed for demanding marine environments, it boasts a strong power density and is HVO compliant. The engine adheres to multiple emission standards, including EPA Marine Tier 3 and IMO Marpol Annex VI. Its compact design ensures efficient use of space, making it suitable for shaft line, water jet, and surface drive transmissions.
- Description
- Ask a Question
-

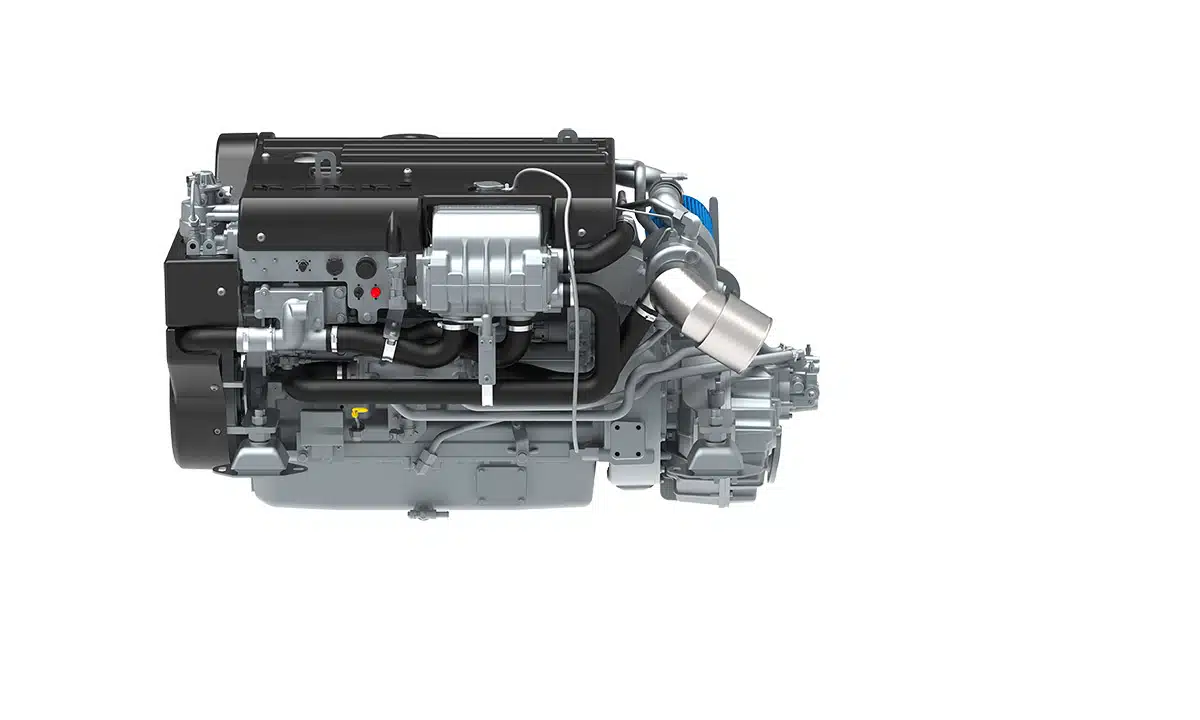

John Deere Type Engine N9.510 CR2, No Gearbox
Introducing the John Deere Type Engine N9.510 CR2, a reliable and powerful engine designed for marine applications. It offers robust performance with a high power density and a solid base from John Deere.
- Features and Benefits:
- HVO Compliant
- Nanni N-Series CR2
- John Deere Engine Base
- Robust Design
- High Power Density
- Specifications:
- Configuration: 6 cylinders in line, 4 strokes Diesel
- Fuel system: Direct injection, High pressure Common Rail, Electronically controlled
- Displacement: 9 l [549 in³]
- Bore & Stroke: 118.4 x 136 mm [4.66 x 5.35 in]
- Air intake: Turbocharged Air-to-seawater aftercooler
- Cooling: Closed cooling with heat exchanger
- Transmission: Shaft Line, Water Jet, Surface Drive
- Emission: RCD2 2013/53/EU, EPA Marine Tier 3, IMO Marpol Annex VI, NRMM (97/68/EC) Tier 3
- Dimensions:
- Max length: 1228 mm [48.3 in]
- Length clutch: 840 mm [33.0 in]
- Width: 951 mm [37.4 in]
- Height: 948 mm [2090 in]
- Weight: 948 kg [2089 lbs]
- Features and Benefits:
-
