SKU:
CN N09510J29004
€ 97.942,79
1-2 weeks delivery time
-
+
The John Deere Type Engine N9.510 CR2 INV ZF286A is optimized for specific marine applications, providing the same reliability and power as the N9.510 CR2, with enhancements for the ZF286A configuration. This engine features a 6-cylinder, 4-stroke diesel engine with direct injection and a high-pressure common rail fuel system. It also includes a turbocharged air-to-seawater aftercooler and closed cooling with a heat exchanger. Compliant with emissions standards such as EPA Marine Tier 3 and IMO Marpol Annex VI, this engine is ideal for various marine transmission systems, including shaft line, water jet, and surface drive.
- Description
- Ask a Question
-

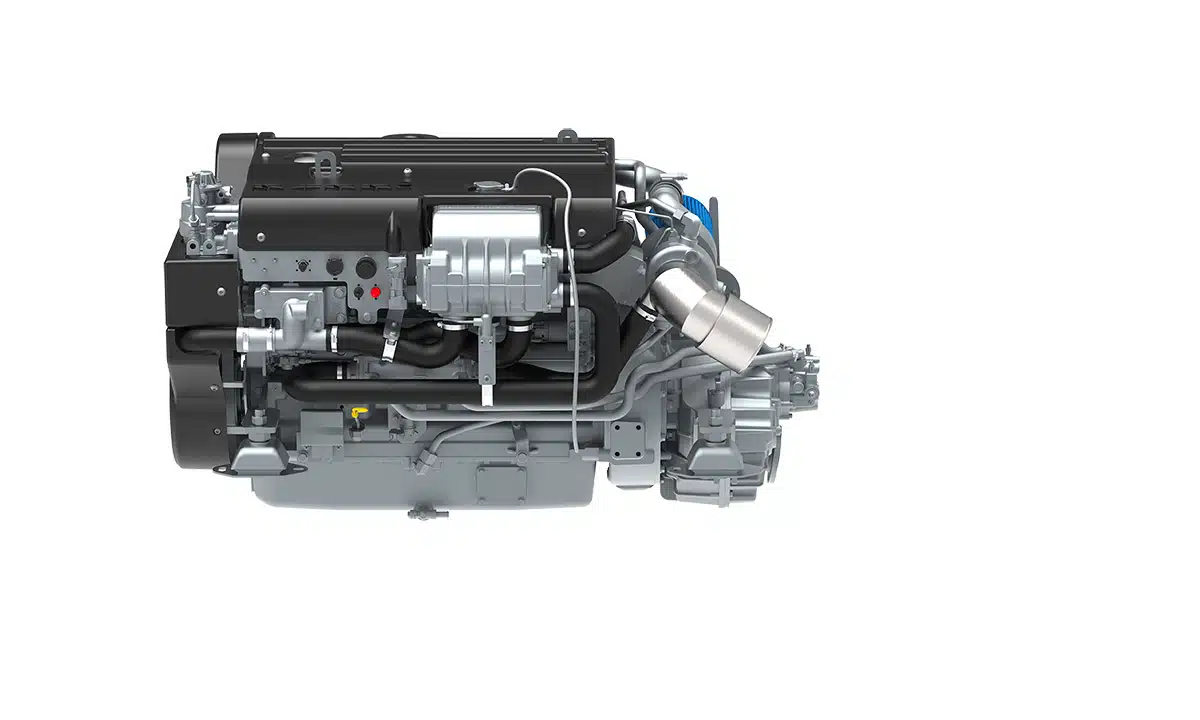

John Deere Type Engine N9.510 CR2 INV ZF286A
The John Deere Type Engine N9.510 CR2 INV ZF286A brings the same power and reliability as the N9.510 CR2 model, optimized with the ZF286A configuration for specific applications, ensuring efficient operation.
- Features and Benefits:
- HVO Compliant
- Nanni N-Series CR2
- John Deere Engine Base
- Robust Design
- High Power Density
- Specifications:
- Configuration: 6 cylinders in line, 4 strokes Diesel
- Fuel system: Direct injection, High pressure Common Rail, Electronically controlled
- Displacement: 9 l [549 in³]
- Bore & Stroke: 118.4 x 136 mm [4.66 x 5.35 in]
- Air intake: Turbocharged Air-to-seawater aftercooler
- Cooling: Closed cooling with heat exchanger
- Transmission: Shaft Line, Water Jet, Surface Drive
- Emission: RCD2 2013/53/EU, EPA Marine Tier 3, IMO Marpol Annex VI, NRMM (97/68/EC) Tier 3
- Dimensions:
- Max length: 1228 mm [48.3 in]
- Length clutch: 840 mm [33.0 in]
- Width: 951 mm [37.4 in]
- Height: 948 mm [2090 in]
- Weight: 948 kg [2089 lbs]
- Features and Benefits:
-
