SKU:
CN N05230D00004
€ 48.571,41
1-2 weeks delivery time
-
+
The John Deere Type Engine N5.230 CR2 (No Gearbox) is built for marine applications, delivering excellent power density and reliability. With a robust design, this engine features a 4-cylinder inline configuration, a 4.5-liter displacement, and a turbocharged air-to-seawater aftercooler. Its closed cooling system with a heat exchanger ensures durability, and it meets IMO MARPOL Annex VI and EPA Marine Tier 3 emissions standards, making it ideal for demanding marine environments.
- Description
- Ask a Question
-

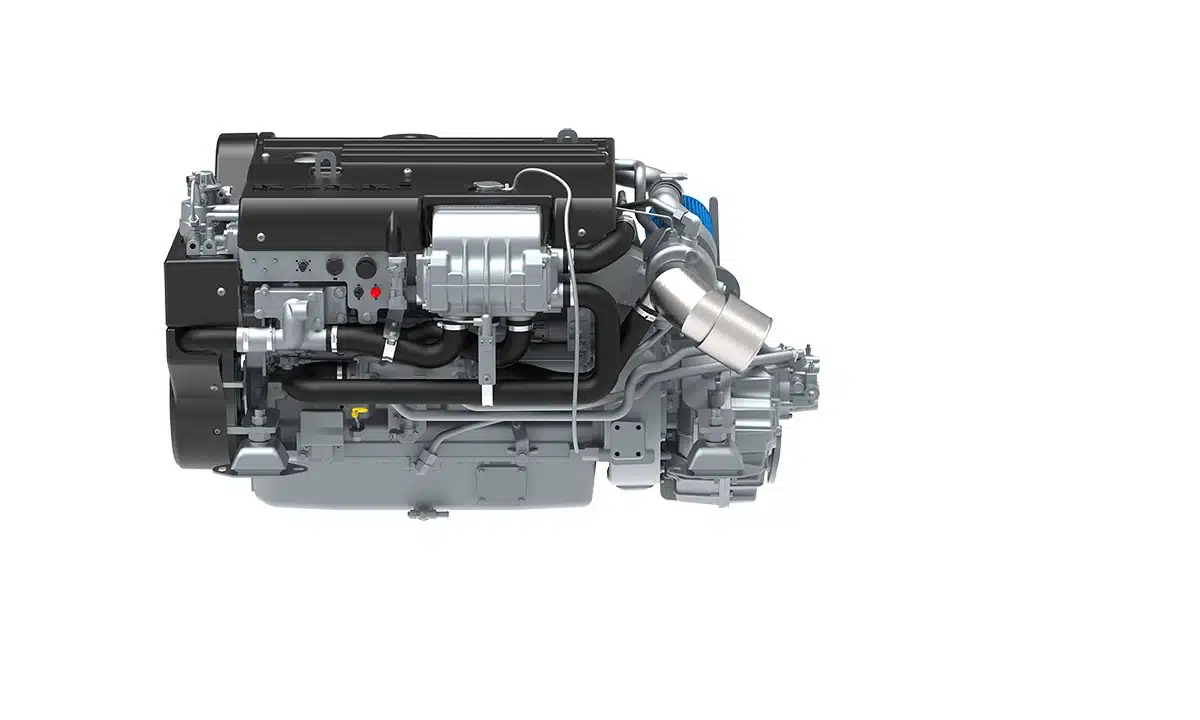

John Deere Type Engine N5.230 CR2, No Gearbox
Introducing the John Deere Type Engine N5.230 CR2, a robust and high-performance engine ideal for marine applications. Built with a focus on power density and efficiency, this engine ensures compliance with various environmental standards, offering excellent reliability in challenging conditions.
- Features and Benefits:
- HVO Compliant
- Nanni N-Series CR2
- John Deere Engine Base
- Robust Design
- High Power Density
- Specifications:
- Configuration: 4 cylinders in line, 4 strokes Diesel
- Fuel system: Direct injection, Mechanical governor electronically controlled
- Displacement: 4.5 l [275 in³]
- Bore & Stroke: 106.4 x 127 mm [4.19 x 5 in]
- Air intake: Turbocharged Air-to-seawater aftercooler
- Cooling: Closed cooling with heat exchanger
- Transmission: Shaft Line, Water Jet
- Emission: IMO MARPOL Annex VI compliant, RCD2 2013/53/EU, EPA Marine Tier 3, NRMM 97/68/EC
- Dimensions:
- Max Length: 885 mm [34.8 in]
- Length clutch: 770 mm [30.3 in]
- Width: 964 mm [37.9 in]
- Height: 578 mm [1274 in]
- Weight: 578 kg [1274 lbs]
- Features and Benefits:
-
