SKU:
CN N05230D24004
€ 58.552,33
1-2 weeks delivery time
-
+
The John Deere Type Engine N5.230 CR2 INV ZF85A 2.5 is engineered for exceptional marine performance with a focus on durability and efficiency. This engine shares key features with the N5.230 CR2, such as a 4-cylinder inline configuration, 4.5-liter displacement, and turbocharged air-to-seawater aftercooler. It is compliant with environmental regulations, including IMO MARPOL Annex VI and EPA Marine Tier 3, ensuring its suitability for a wide range of marine applications while maintaining high power density and robust design.
- Description
- Ask a Question
-

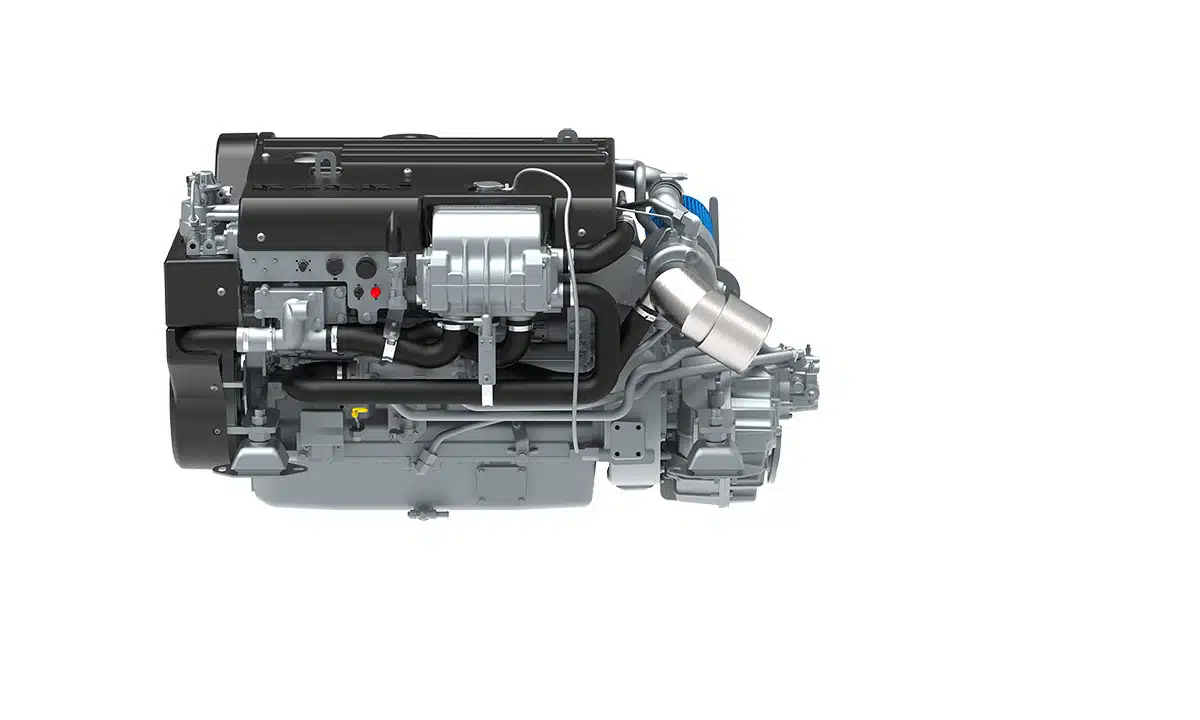

John Deere Type Engine N5.230 CR2 INV ZF85A 2.5
The John Deere Type Engine N5.230 CR2 INV ZF85A 2.5 is engineered to deliver high efficiency and durability, offering exceptional performance for marine environments. With advanced features and a reliable design, this engine is an excellent choice for various maritime applications.
- Features and Benefits:
- HVO Compliant
- Nanni N-Series CR2
- John Deere Engine Base
- Robust Design
- High Power Density
- Specifications:
- Configuration: 4 cylinders in line, 4 strokes Diesel
- Fuel system: Direct injection, Mechanical governor electronically controlled
- Displacement: 4.5 l [275 in³]
- Bore & Stroke: 106.4 x 127 mm [4.19 x 5 in]
- Air intake: Turbocharged Air-to-seawater aftercooler
- Cooling: Closed cooling with heat exchanger
- Transmission: Shaft Line, Water Jet
- Emission: IMO MARPOL Annex VI compliant, RCD2 2013/53/EU, EPA Marine Tier 3, NRMM 97/68/EC
- Dimensions:
- Max Length: 885 mm [34.8 in]
- Length clutch: 770 mm [30.3 in]
- Width: 964 mm [37.9 in]
- Height: 578 mm [1274 in]
- Weight: 578 kg [1274 lbs]
- Features and Benefits:
-
