SKU:
CN N13800D36004
€ 150.710,16
1-2 weeks delivery time
-
+
The John Deere Type Engine N13.800 CR2 INV ZF325 is designed for heavy-duty marine applications, offering exceptional fuel efficiency and lower emissions. With a robust six-cylinder inline configuration, the engine features electronically controlled unit injectors, turbocharged air intake, and closed cooling with a heat exchanger, meeting several emission standards including EPA Marine Tier 3 and IMO Marpol Annex VI.
- Description
- Ask a Question
-

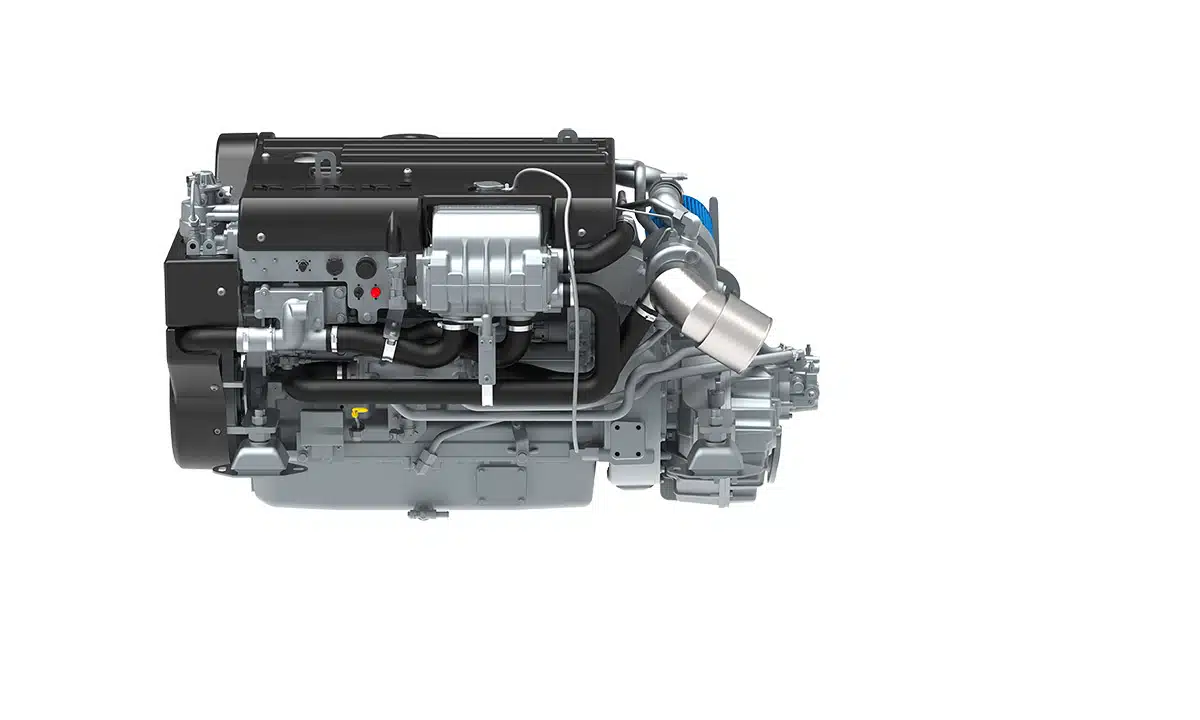

John Deere Type Engine N13.800 CR2 INV ZF325
Introducing the John Deere Type Engine N13.800 CR2 INV ZF325, engineered to meet the demands of heavy-duty marine use, providing excellent fuel efficiency and reduced emissions.
- Features and Benefits
- HVO Compliant
- John Deere Engine Base
- Robust Design
- High Power Density
- Specifications
- Configuration: 6 cylinders in line, 4 strokes Diesel
- Fuel system: Electronically controlled unit injectors
- Displacement: 13.6 l [830 in³]
- Bore & Stroke: 132 x 165 mm [5.2 x 6.5 in]
- Air intake: Turbocharged Air-to-seawater aftercooler
- Cooling: Closed cooling with heat exchanger
- Transmission: Shaft Line, Water Jet, Surface Drive
- Emission: RCD2 2013/53/EU, EPA Marine Tier 3, IMO Marpol Annex VI, NRMM (97/68/EC) Tier 3
- Dimensions:
- Max length: 1426 mm [56.1 in]
- Length clutch: 1032 mm [40.6 in]
- Width: 1143 mm [45 in]
- Height: 1380 mm [3042 in]
- Weight: 1380 kg [3042 lbs]
- Features and Benefits
-
