SKU:
CN FPT-N40-170
1-2 weeks delivery time
Our managers will contact you and clarify the terms of the order
The FPT Marine Diesel Engine Type N40-170 is a four-cylinder engine with a displacement of 3.9 liters, offering reliable performance for marine applications. It features a common rail injection system, heat exchanger cooling, and a turbocharger, ensuring fuel efficiency and durability in maritime environments.
- Description
- Ask a Question
-

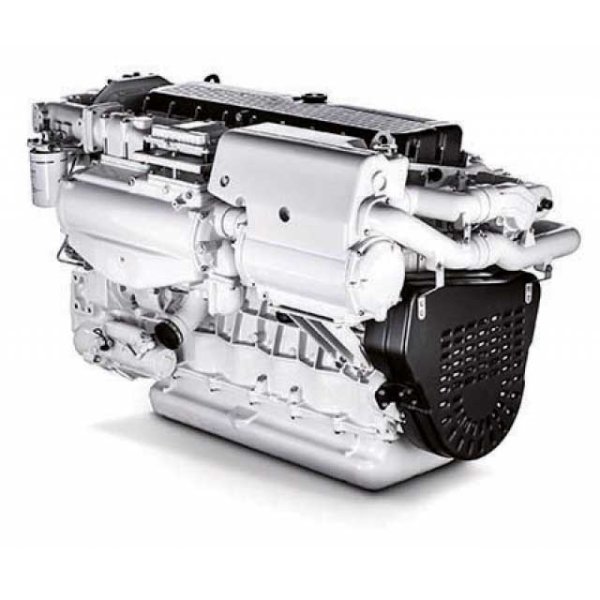

FPT Marine Diesel Engine Type N40-170
The FPT Marine Diesel Engine Type N40-170 offers robust performance with advanced technology for marine applications. It is designed to provide high efficiency and durability for various maritime tasks.
- Thermodynamic Cycle: Diesel 4-stroke
- Air Handling: TCA
- Cylinders Arrangement: 4L
- Bore x Stroke: 102 x 120 mm
- Total Displacement: 3.9 liters
- Valves per Cylinder: 4
- Cooling System: Liquid
- Direction of Rotation (viewed facing flywheel): CCW
- Engine Management: EDC (Electronic Diesel Control)
- Injection System: CR (Common Rail)
- Dimensions (L x W x H): 850 x 780 x 785 mm
- Weight: 490 kg
- Voltage: 12V
- Flywheel Housing: SAE 3
- Flywheel Size: 11 ½ inches
- Air Filter: Rear side
- Turbocharger: Fixed Geometry (water-cooled) Turbo with Aftercooler (TCA)
- Heat Exchanger: Tube type
- Exhaust Gas Water Mixer – Exhaust Cooled Elbow: None
- Water Charge Tank: Included
- Fuel Filter: 1
- Fuel Prefilter: Included (loose)
- Fuel Pump: Included
- Oil Filter: 1
- Oil Sump: Aluminium
- Oil Vapours Blow-By Circuit: Rear
- Oil Heat Exchanger: Built into the crankcase
- Oil Filler: By cylinder head cover
- Starter: 12V – 3kW
- Alternator: 12V – 90A
- Engine Stop Device: By electronic central unit
- Wiring Harness: With negative to ground connection
- Painting Color: White "ICE"
-
