SKU:
VDM VCT100100
€ 64,06
1-2 weeks delivery time
Price incl. 19% VAT
Price incl. 19% VAT
-
+
The Battery Balancer is crucial for maintaining battery health, supporting up to 18V per battery and 36V for two 12V batteries in series, with features like alarm triggers and a robust operating temperature range from -30°C to +50°C, making it suitable for various applications.
- Description
- Ask a Question
-

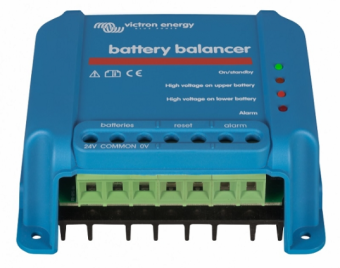

Battery Balancer
This Battery Balancer is essential for maintaining the health of your battery systems.
- Specifications:
- Battery input voltage: Up to 18V per battery, 36V total for two 12V batteries in series
- Activation voltage: Turns on at 27.3V ± 1% to initiate balancing
- Deactivation voltage: Turns off at 26.6V ± 1% once voltage is balanced
- Balancing current: Up to 0.7A (initiated at >100 mV deviation)
- Alarm trigger level: Activated at a 200 mV deviation
- Alarm reset level: Reset occurs at a 140 mV deviation
- Alarm relay rating: 60V / 1A, normally open
- Operating temperature range: -30°C to +50°C (-22°F to +122°F), supporting various climates
- Humidity tolerance: Supports up to 95% non-condensing for harsh environments
- Enclosure rating: IP22, providing protection against dust and incidental water exposure
- Connections: Screw terminals suitable for 6 mm² / AWG10 wiring
- Dimensions: 100 x 113 x 47 mm (3.9 x 4.4 x 1.85 inches)
- Weight: 0.4 kg (0.88 lbs)
- Compliance: Safety EN 60950, Emission EN 61000-6-3, and Immunity EN 61000-6-2
- Compatibility and Application:
- Designed for battery balancing in 24V and 48V battery banks with series-connected 12V batteries
- Commonly used in renewable energy, marine, RV, and off-grid applications where battery health is essential
- Brand: Victron Energy
- Product Number: BBA000100100
-
