The Rebelcell QCFF12VREUA Quick Connect Fishfinder Universal Cable allows safe and easy connection between a 12V Rebelcell battery and depth sounders, featuring three 4mm² cables with various connectors, a 3A in-line fuse, and simple installation steps. It is suitable for 12V devices up to 10 amps and includes both 3A and 5A fuses.
- Description
- Ask a Question
-
Rebelcell QCFF12VREUA - Quick Connect Fishfinder – Universal Cable
This quick connect cable is designed for safe and easy connection between a 12V Rebelcell battery and a depth sounder. It includes an integrated in-line fuse for protection and multiple connection options to fit different battery types.

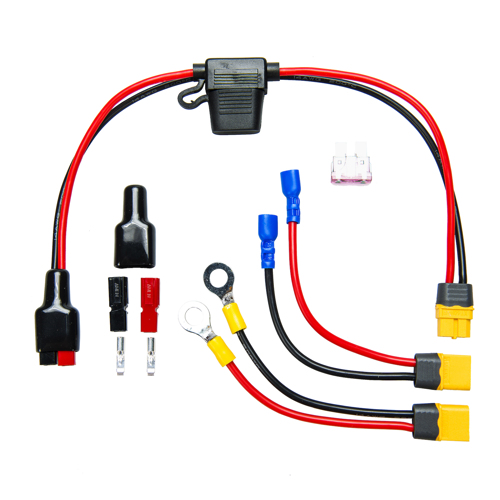

- Includes three 4mm² connection cables:
- Cable A: Approximately 40 cm, with XT60 connector and ANEN PA-45 (red/black) connector
- Cable B: Approximately 10 cm, with XT60 connector and M8 cable lugs
- Cable C: Approximately 10 cm, with XT60 connector and Faston plug

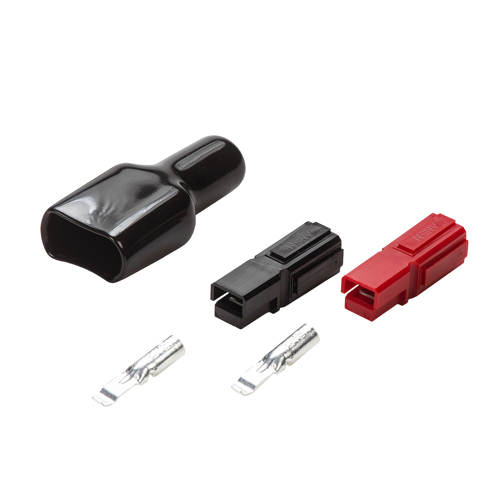

- Built-in in-line fuse rated at 3 amps, with a loose ANEN PA-45 plug for equipment connection
- Installation steps:
- Choose cable B or C depending on your battery type and connect it to the battery.

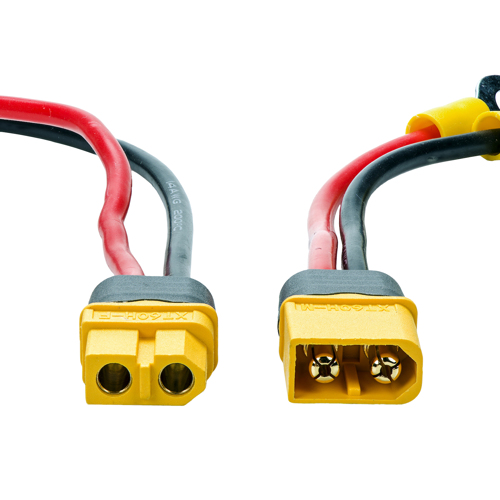

- Connect the yellow XT60 plug on the other side to the corresponding XT60 connector on cable A.
- Attach the loose ANEN plug to the depth sounder by crimping silver contacts to the depth gauge cables, then snap them into the red (positive) and black (negative) connectors for a secure fit.
- Suitable for use only with depth sounders or other 12V devices with a maximum current of 10 amps
- Includes both 3 amp and 5 amp fuses for appropriate protection
- General information:
- Order number: 00710583
- Supplier code: QCFF12VREUA
- Barcode: 8720964630106
- Includes three 4mm² connection cables:
-
