The Rebelcell DC24V07REPK Range Extender 29.4V07A extends the usage of 24V50 / 24V100 batteries by recharging during operation from outboard motors with a 12V alternator above 17A. It includes a DC charger, isolation relay, and cable set with fuses, providing safe charging with protections against overcharge, thermal issues, and short circuits.
- Description
- Ask a Question
-
Rebelcell DC24V07REPK - Range Extender 29.4V07A – For 24V50 / 24V70 / 24V100 Li-Ion Battery
The Rebelcell DC24V07REPK Range Extender allows longer use of your Rebelcell 24V50 / 24V100 battery by recharging it during operation via the outboard motor. It is designed for outboard motors with a 12V alternator delivering over 17A, typically suitable for BBM engines of 80HP or more.

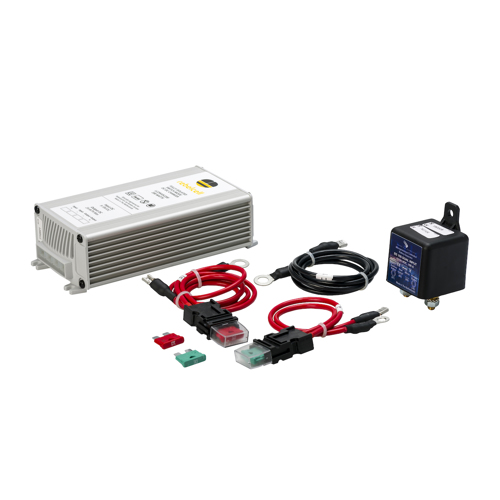

- Includes Rebelcell DC-Charger 29.4V7A (200W power), Samlex BS100 Dual isolation relay, and cable set with integrated fuses and plugs*
- Optimal charging profile converts alternator current to safely recharge the Rebelcell battery
- Microprocessor-controlled isolation relay protects starter battery discharge by activating charging only after starter battery is full
- Overcharge protection reduces or stops charging current when battery is nearly or fully charged
- Dynamic thermal output control reduces current or shuts off charging if temperature rises too high
- Automatic shutdown in case of short circuit; reverse polarity protection on input side only
- *Note: Starter battery connection cables are not included and should be custom-installed by a professional
- Order number: 00710524
- Supplier code: DC24V07REPK
- Barcode: 7106623691915
- Voltage: 9-18V input, 29.4V output
- Charging current max: 7 A
- Dimensions: 176 x 88 x 50 mm
- Weight: 0.6 kg
-
