€ 890,02
1-2 weeks delivery time
Price incl. 19% VAT
Price incl. 19% VAT
-
+
The Crankcase Ventilation Systems from Racor manage engine blowby gases efficiently in both open and closed configurations. The CCV4500 series features an integrated head bracket, maximum flow rate of 10 cfm, and includes various compatible elements, with the product number CCV4500-08R.
- Description
- Ask a Question
-

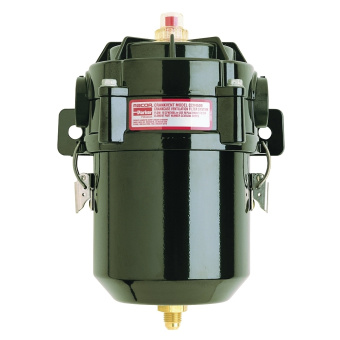

Crankcase Ventilation Systems (Open or Closed) – Racor CCV and CV Series
This crankcase ventilation system efficiently manages engine blowby gases in both open and closed configurations.
- Product Series: Cartridge Crankcase Ventilation, CCV4500
- Brand: Racor
- Fluid Type: Engine Blowby Gas
- Mounting Type: Integrated Head Bracket
- Inlet Location: Right
- Compatible Elements: Low: CCV55248-04, High: CCV55248-08, Ultra: CCV55248-10
- Maximum Flow Rate: 10 cfm / 0.28 m3/m
- Port Size: 1-3/16 inch SAE 12
- Drain: Drain Kit: Hose, Check Valve, (2) Swivel Fitting
- Materials of Construction: Die cast head, glass-filled nylon, and black powder epoxy-coated steel bowl
- Indicator Type: Element Bypass/Change Indicator
- Pressure Regulator Type: Integral Crankcase Pressure Regulator
- Dimensions: Width: 7.2 inch, Depth: 5.6 inch, Height: 9.3 inch
- Heat Type: 100W Optional: CCV55461 (120VAC), CCV55461-12 (12VDC), CCV55461-24 (24VDC)
- Interface Type: Remote Bypass Indicator Kit CCV55615-01
- Filtration Ratings: High
- Type/Configuration: Closed System
- Function: Bypass Assembly
- Maximum Output: 400 HP / 300 kW
- Brand: Parker
- Product Number: CCV4500-08R
Parker SKU: CCV4500-08R
VDM - Reya SKU: RACCCV4500-08R
EAN CODE: 505,6927 -
