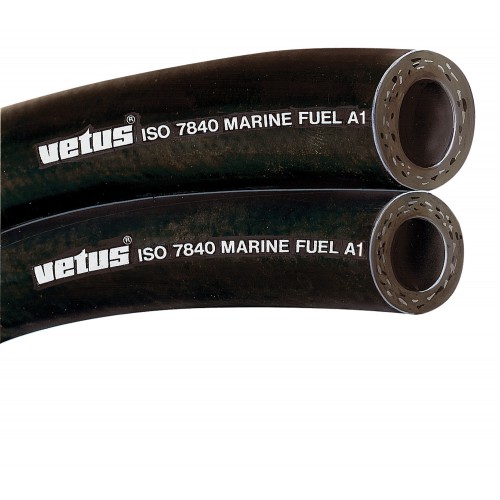

Vetus FUHOSEA Fuel Hose

€ 11,82

1-2 weeks delivery time
Price incl. 19% VAT

Diameter, mm:

6x13
8x16
10x18
13x22
16x25
19x28
25x35

Vetus FUHOSEA Fuel Hoses are versatile and designed for various applications, such as delivering fuel from the tank to the fuel filter or serving as ventilation components. These hoses meet the A1 quality standard, making them suitable for use with both gasoline (up to 15% ethanol content) and diesel fuel (up to 7% biodiesel content).

Description
Ask a Question

These hoses feature a robust construction with an outer layer made of NBR type rubber and an inner layer made of CR, reinforced for durability. Vetus Marine Fuel A1 fuel hoses undergo rigorous testing, including a refractory test lasting 2.5 minutes, and they have a maximum permeability of 4 grams/m²/hour.

Vetus FUHOSEA fuel hose specifications:

SKU	Internal Diameter	Outside Diameter	Weight	Operating Pressure	Bend Radius
FUHOSE06A	6 mm 1/4”	13 mm	0,16 kg/m	10 bar	25 mm
FUHOSE08A	8 mm 5/16”	16 mm	0,24 kg/m	10 bar	30 mm
FUHOSE10A	10 mm 3/8”	18 mm	0,28 kg/m	10 bar	35 mm
FUHOSE13A	13 mm 1/2”	22 mm	0,39 kg/m	10 bar	50 mm
FUHOSE16A	16 mm 5/8”	25 mm	0,45 kg/m	10 bar	60 mm
FUHOSE19A	19 mm 3/8”	28 mm	0,52 kg/m	10 bar	80 mm
FUHOSE25A	25 mm 1”	35 mm	0,73 kg/m	10 bar	110 mm
