SKU:
TN 00700172
€ 653,45
1-2 weeks delivery time
-
+
The SeaFire 131-440 engine shutdown control system has 4 outputs energized during standby and de-energized on shutdown, uses CAT5 cable connectivity, and supports reliable motor or fan control with a voltage range of 12-32 Volts.
- Description
- Ask a Question
-

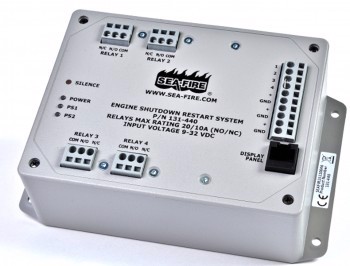

SeaFire 131-440 - Engine Shutdown Control, 4 Outputs
This engine shutdown relay system features 4 relays energized during standby, which de-energize upon shutdown to control motors or fans automatically. It connects via CAT5 cable and ensures reliable motor stop activation.
- Power Consumption: 370 mA @ 13 VDC, 180 mA @ 28 VDC
- Order number: 00700172
- Supplier code: 131-440
- Barcode: 791828143238
- Dimensions (L×W×H): 185 × 120 × 60 mm
- Weight: 600 g
- Voltage range: 12-32 Volts
- Number of outputs: 4
- Fuse rating: 3 Ampere
- Relay current rating: Open 20 A, Closed 10 A
- Operating temperature range: -7 to +54 °C
-
