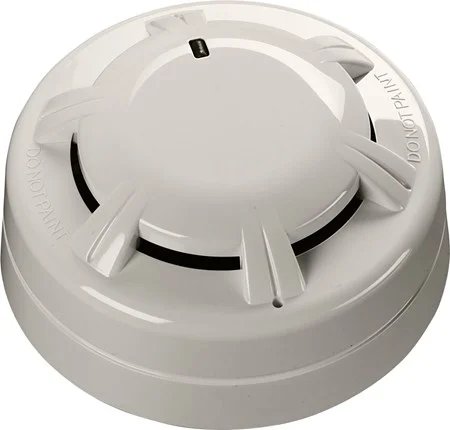

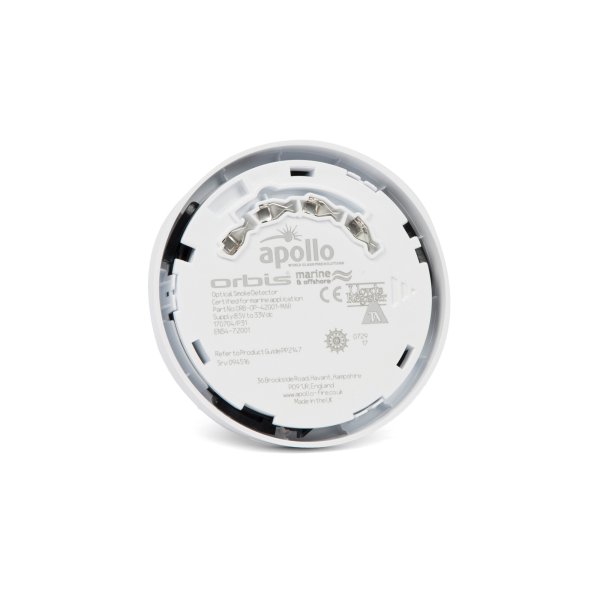

Apollo Orbis Marine Optical Smoke Detector (ORB-OP-42001-MAR)

Apollo Orbis Marine Optical Smoke Detector (ORB-OP-42001-MAR)

The Apollo Orbis Marine Optical Smoke Detector utilizes a highly advanced optical sensing technology based on the light scatter principle, providing enhanced reliability in detecting fires while significantly reducing false alarms.

• Designed to respond quickly to fast-burning, flaming fires
• Minimizes false alarms for more accurate fire detection
• Reliable performance under a wide range of temperatures and voltages
• Built-in sensing chamber that prevents dust and other airborne contaminants
• Optional flashing LED for enhanced visibility in alarm situations

Technical Specifications

• Warranty: 10 years
• Applications: Bedrooms, Escape routes, Marine environments
• Fire Type: Slow burning, smouldering fires
• Colour: White
• Sensor Configuration: Chamber with surface-mount infrared emitter and prism. Solid-state integrated photo-diode and amplifier
• Weight: 75g
• Housing Material: Polycarbonate
• Product Dimensions: Length: 31mm, Diameter: 97mm (1.22in x 3.82in)
• Detection Principle: Photo-electric light scattering
• Approvals: BV, LR, DNV.GL, CCS, ABS, MED

Performance and Electrical Characteristics

• Chamber Type: Chevron
• Maximum Power-Up Time: <20 seconds
• Quiescent Current: 95μA (tested at 24V DC)
• Polarity: L1 & L2 are polarity sensitive
• Sampling Frequency: Once every 4 seconds
• Minimum Active Voltage: 6V
• Holding Voltage: 5V to 33V
• Alarm Reset Voltage: <1V
• Alarm Reset Time: 1 second
• Alarm Load: 600Ω

Environmental Characteristics

• Humidity: 0% to 98% RH (no condensation or icing)
• Operating Temperature: -40°C to 70°C (-40°F to 158°F)
• Storage Temperature: -40°C to 70°C (-40°F to 158°F)
• IP Rating: IP23D

Benefits

• Faster and easier installation and maintenance
• Improved false alarm rejection for reliable operation
• Wide range of detectors for precise and fast fire detection in various environments
