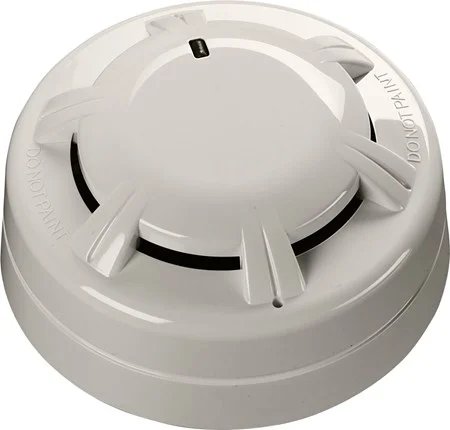

Apollo Orbis Marine Optical Smoke Detector - Flashing LED (ORB-OP-42003-MAR)

Apollo Orbis Marine Optical Smoke Detector - Flashing LED (ORB-OP-42003-MAR)

The Apollo Orbis Marine Optical Smoke Detector is designed with an advanced optical technology that minimizes false alarms while providing excellent fire detection for marine applications. This smoke detector operates based on the light scatter principle but is designed with a unique sensor configuration that enhances reliability.

• Effective for fast-burning, flaming fires
• Significantly reduces false alarms
• Highly reliable detection in challenging conditions
• Sensing chamber prevents dust and airborne contaminants from affecting performance
• Works across a wide voltage range and withstands extreme temperatures
• Flashing LED indicator option for clear visual alert

Technical Specifications

• Warranty: 10 years
• Applications: Bedrooms, escape routes, marine environments
• Fire Type: Slow burning, smouldering fires
• Colour: White
• Sensor Configuration: Chamber with surface-mount infrared emitter and prism. Solid state integrated photo-diode and amplifier
• Weight: 75g
• Housing Material: Polycarbonate
• Product Length: 31mm
• Product Diameter: 97mm
• Detection Principle: Photo-electric light scattering
• Approvals: CRS, LR, DNV.GL, CCS, BV, ABS, MED

Performance Specifications

• Chamber Type: Chevron
• Maximum Power-Up Time: Less than 20 seconds
• Quiescent Current: 95μA at 24V DC
• Polarity: L1 & L2 are polarity sensitive
• Sampling Frequency: Once every 4 seconds
• Minimum 'Detector Active' Voltage: 6V
• Holding Voltage: 5 to 33V
• Minimum Voltage to Light Alarm LED: 5V
• Alarm Reset Voltage: Less than 1V
• Alarm Reset Time: 1 second
• Alarm Load: 600Ω

Environmental Specifications

• Humidity: 0% to 98% RH (no condensation or icing)
• Operating Temperature: -40°C to 70°C
• Storage Temperature: -40°C to 70°C
• IP Rating: IP23D
