SKU:
CN FPDFP-05-002
€ 99,69
1-2 weeks delivery time
-
+
The Apollo Orbis Marine Heat Detector (ORB-HT-41018-MAR) is designed for environments where traditional smoke detectors may not be effective. It uses a thermistor to detect temperature changes, making it ideal for dusty or smoky areas. The detector features a flashing LED for visual indication and offers reliable temperature detection with a 10-year warranty.
- Description
- Ask a Question
-

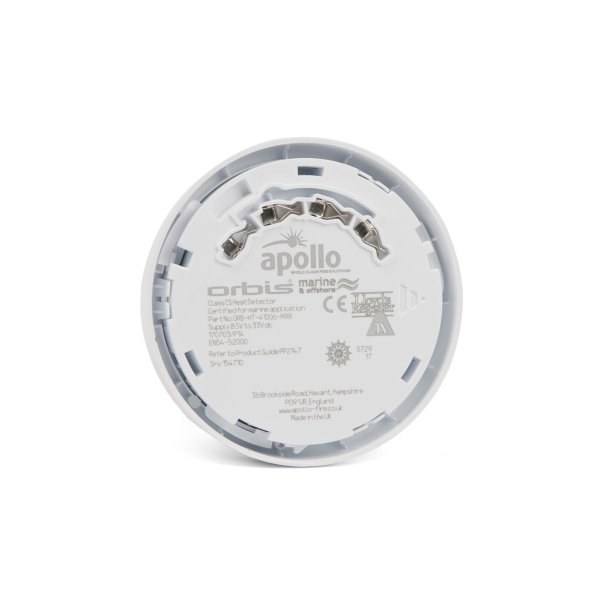

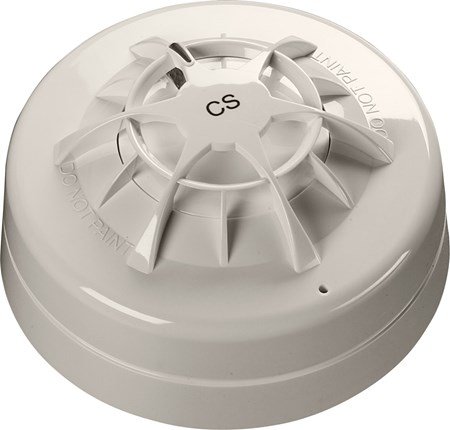

Apollo Orbis Marine Heat Detector (CS) - Flashing LED (ORB-HT-41018-MAR)
The Orbis Marine Heat Detector is designed to detect temperature variations in environments where traditional smoke detectors might not be suitable. It utilizes a thermistor to sense the air temperature and is ideal for applications in challenging environments such as dusty or smoky areas.
- Single thermistor for temperature detection
- Perfect for environments where smoke detectors are ineffective
- Flashing LED option for visual indication
Technical Specification
- Warranty: 10 years
- Applications: Dusty environments, Marine
Performance
- Heat classification: CS
Mechanical
- Colour: White
- Weight: 70g
- Material housing: Polycarbonate
- Product length: 36mm (1.42 inches)
- Product diameter: 97mm (3.82 inches)
Conformance
- Approvals: BV, LR, DNV.GL, CCS, ABS, MED
Electrical
- Maximum power-up time: <20 seconds
- Quiescent current: 95μA (tested at 24V DC)
- Polarity: L1 & L2 are polarity sensitive
- Minimum 'detector active' voltage: 6V
- Holding voltage range: 5V to 33V
- Minimum voltage to light alarm LED: 5V
- Alarm reset voltage: <1V
- Alarm reset time: 1 second
- Alarm load: 600Ω
- Sampling frequency: Once every 4 seconds
Environmental
- Humidity range: 0% to 98% RH (no condensation or icing)
- IP rating: IP23D
-
