Vetus NLP 10L Exhaust Waterlock 10 Liter

Vetus NLP 10L Exhaust Waterlock 10 Liter

The Vetus NLP 10L Exhaust Waterlock is engineered for efficient exhaust gas management and noise reduction. With a 10-liter capacity and designed to accommodate hose diameters of 51 mm, 60 mm, 76 mm, and 90 mm, this waterlock is ideal for various marine exhaust systems. It features a two-stage design with upper and lower chambers and a central pipe that lifts water through the system for optimal silencing and minimal back pressure.

Key Features:

• Capacity: 10 liters for enhanced exhaust management.
• Hose Diameter Compatibility: Suitable for 51 mm, 60 mm, 76 mm, and 90 mm internal diameter exhaust hoses.
• Two-Stage Design: Upper and lower chambers with a horizontal separating plate for effective water lifting.
• Noise Suppression: Excellent exhaust noise reduction with minimal back pressure for quiet and efficient operation.

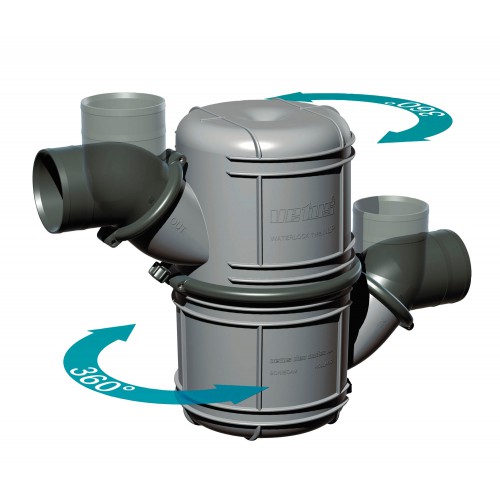

• Rotating Inlet and Outlet: Both the inlet and outlet pipes can rotate 360°, offering flexible installation in tight spaces.
• Winter Drain Hole: Includes a drain hole for easy maintenance and winterization.
• Mounting Options: The waterlock can be mounted on both the floor and bulkhead, with included fasteners for convenience.
• Optimal Noise Suppression: It is recommended to install a Vetus muffler and NLPG gusset in the exhaust duct after the NLP water lock for enhanced noise control.

Product Specifications:

• Capacity: 10 liters
• Hose Diameter Compatibility: 51 mm, 60 mm, 76 mm, 90 mm
• Features: 360° Rotating Inlet and Outlet, Winter Drain Hole
• Design: Two-Stage with Upper and Lower Chambers, Horizontal Separating Plate
• Mounting: Floor and Wall Mount with Included Fasteners

This Vetus Waterlock is a highly effective solution for boats and yachts requiring enhanced exhaust noise suppression and low back pressure. Its versatile design and ease of installation make it an excellent choice for a variety of marine exhaust systems.

Vetus Catalog Parts: NLP50S, NLP60, NLP75, NLP90
