SKU:
ALP 9064882
€ 1.790,98
1-2 weeks delivery time
-
+
The NHK MEC NM2447-00 is a control unit tailored for KE-6+ and KE-7+ electronic engine control systems, supporting both mechanical and electronic throttle or shift setups. It features single lever operation, neutral throttle warm-up, multi-station support with handheld control, start-in-gear protection, synchronization mode, and a user-friendly display for troubleshooting, operating within a DC voltage range of 9V to 32V.
- Description
- Ask a Question
-

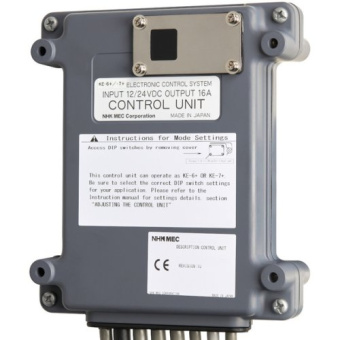

NHK MEC NM2447-00 - KE-6+/7+ Control Unit
The NHK MEC NM2447-00 is a control unit designed specifically for use with KE-6+ and KE-7+ electronic engine control systems for boats. These systems support a combination of mechanical and electronic throttle or shift configurations, offering flexible engine management solutions for marine applications.
- Compatible with KE-6+ and KE-7+ boat engine control systems
- Supports mechanical shift with electronic throttle or electronic shift with mechanical throttle
Features:
- Single lever operation for throttle and shift
- Neutral throttle warm-up function
- Supports up to 4 stations plus handheld controller, with station selection at the control head
- Start-in-gear protection included
- Synchronization mode available for engine coordination
- Display provides ease of troubleshooting with clear readings
Specifications:
- Supply Voltage: DC9V - DC32V
- Current Consumption at stop of actuator: 0.5A or less
- Actuator current flow: 16A peak, 5A average under nominal conditions (49N {5kgf} - 11lbf load, mid-range temperature)
- KE-7+ mode shift output contact point capacity (Normally Open) under nominal conditions: 5A
- KE-6+ mode throttle outputs (via shift, throttle, or CAN harness):
- Current: 3mA to 21mA
- Analog Voltage: 0.2V to 4.53V
- PWM: 6% to 94% duty cycle, 500Hz
- CAN: SAE J1939 protocol; 250 kbits/s; throttle scale 0.4%/bit; PGN 61443, CAN ID 0CF0 0331
Properties:
- General
- Article Number: 9064882
-
