SKU:
ALP 9064867
€ 1.554,43
1-2 weeks delivery time
-
+
The NHK MEC KE-5+ control unit offers precise electronic management of throttle and shift for marine engines and transmissions, supporting up to four stations with advanced safety and diagnostic features, and operates on a 12V/24V DC supply voltage.
- Description
- Ask a Question
-

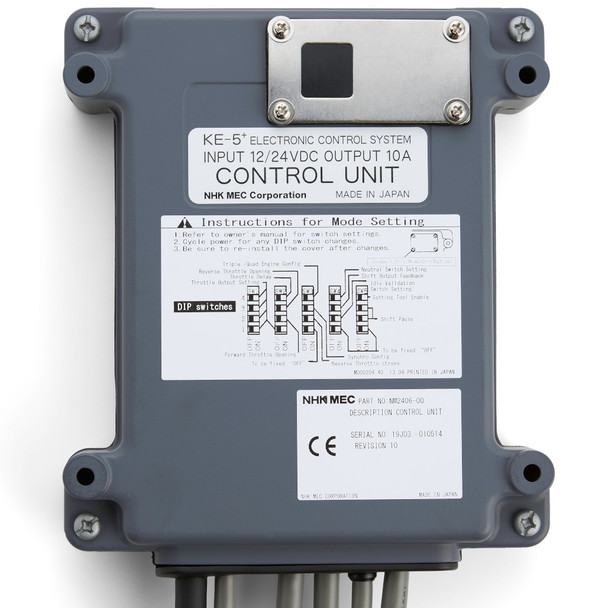

NHK MEC NM2406-00 - KE-5+ Control Unit 12V/24V DC
The NHK MEC KE-5+ electronic control unit provides precise management of throttle and shift functions for electronic engines and transmissions. This unit, part of the KE+ system—the latest generation in a series developed since 1994 for marine applications—supports up to four stations and includes advanced safety and diagnostic features.
- Article number: 9064867
- Single lever operation for both throttle and shift
- Neutral throttle warm-up capability
- Supports up to 4 stations plus handheld control
- Station selection available directly at control head
- Prevents engine start while in gear
- Synchronization mode available
- Diagnostic display for easy troubleshooting
- Supply Voltage: DC9V–DC31V
- Shift output tied to power supply voltage
- Connections for forward, reverse, and neutral switches
- Shift output capacity: 9A max
- Throttle current output: 4mA to 20mA
- Idle Validation Switch: Normally closed, Normally open
-
