SKU:
ALP 9064709
€ 8.017,15
1-2 weeks delivery time
-
+
The NHK MEC KE-7+ Throttle Control System for two motors and two steering stations provides a fully customizable marine engine control solution, including CANbus and power harnesses, idle switches, alarms, and various accessories. It operates on 9V to 32V DC with a max actuator current of 16A and supports up to 80mm throttle travel, with article number 9064709.
- Description
- Ask a Question
-

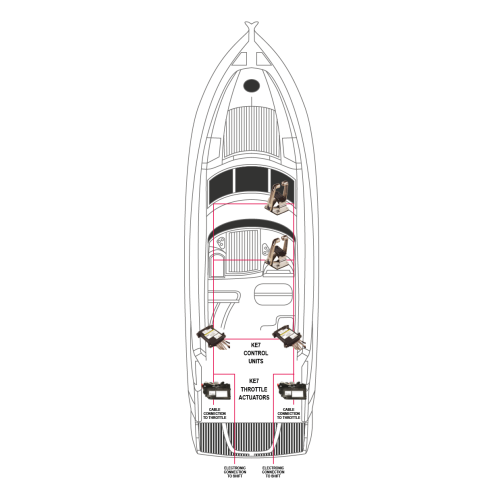

NHK MEC KE-7+ Throttle Control System – 2 Motors / 2 Steering Stations
This comprehensive throttle control system is equipped for dual-motor, dual-station setups. It supports optional configuration of CANbus and power harnesses, idle switch systems, and alarm components, providing full customization based on vessel requirements.
- NHK MEC Canbus T-Harness (R/C-1) (NM0647-09) – Code: 9064761
- NHK MEC KE-6+/7+ Control Unit, 12V/24V (NM2447-00) – Code: 9064882
- NHK MEC KE+ CANbus T-Harness (R/C) (NM0647-10) – Code: 9064762
- NHK MEC KE-4+ Canbus T-Harness (Starboard) (NM0647-13) – Code: 9064765
- NHK MEC KE-5+ Harness Shift, 5m (NM0640-05) – Code: 9064955
- NHK MEC KE-6+/7+ Actuator Harness, 2m (NM0667-00) – Code: 9064975
- NHK MEC KE Power Harness 5m (NM0414-28) – Code: 9064830
- Seastar Control Cable 'Xtreme' CCX633 6' (1.83m) – for inboard, stern drive, and outboard engines – Code: CCX63306
- NHK MEC KE-6+/7+ Shift/Throttle Actuator (NM0199-00) – Code: 9064749
- NHK MEC KE+ CANbus Harness 8m (NM0649-08) – Code: 9064778
- NHK MEC KE-4+ Dual Action Twin Top Mount Control, Inboard Style (SST), Chrome (NM1053-00) – Code: 9064756
- NHK MEC KE-4+ Canbus T-Harness (Port) (NM0647-12) – Code: 9064764
- Supply Voltage: 9V ~ 32V DC
- Current Consumption: 0.5A Standby or less
- Starting Current Actuator: 16A Max, 5A typical (with 49N / 5 kgf load)
- Temperature Environment: -20°C to +77°C (-4°F to 170°F)
- Throttle Travel: Max. 80mm
- Shift Output: Max. 8A contact point capacity (normally open)
- Article number: 9064709
-
